CVV/CWB/GSWB – 0.6/1kV – Control cable

Cu/PVC/CWB/GSWB/FR-PVC

Control cable, copper conductor, 1 core, PVC insulated, copper wire braid, galvanized steel wire braid, FR-PVC sheathed.

STANDARDS

IEC 60228/ TCVN 6612
IEC 60502-1/ TCVN 5935-1

TECHNICAL CHARACTERISTICS

Rated voltage (Uo/U): 0.6/1kV.
Voltage test 50Hz – 5min: 3.5kV.
Max. conductor temperature in normal operation: 70ºC.
Max. conductor temperature in short-circuit for 5s max duration: 160ºC.

Function Group: Control Cables, Low Voltage Cables, Fire-Resistant Cables

APPLICATION:

Used in buildings, cable ladders, cable trays, pipes running on walls or in walls, in closed cable boxes, in factories, buildings, sources go to mechanical equipment in pipes buried underground,…

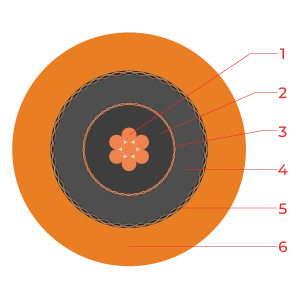

STRUCTURE:

1. Conductor: Annealed copper, concentric stranded conductor (class 2).

2. Insulation: PVC.

3. Metallic screen: Copper wire braid

4. Inner covering: PVC.

5. Armour: Galvanized steel wire braid.

6. Outer sheath: FR-PVC.

MARKINGS ON CABLE:

NGOC LAN CABLE® – [YEAR] – Cu/PVC/CWB/PVC/GSWB/PVC 1Cx [SIZE] mm² 0.6/1kV- #### m

TECHNICAL SPECIFICATIONS TABLE


Tiết diện danh định	Cấu trúc	Đường kính ruột dẫn	Chiều dày cách điện danh định	Đường kính sợi đồng dệt lưới	Đường kính sợi thép dệt lưới	Chiều dày vỏ ngoài	Đường kính ngoài gần đúng của cáp	Điện trở DC tối đa ở 20ºC	Trọng lượng gần đúng
Nominal area	Structure	Approx. Conductor diameter	Nom. Thickness of insulation	Nom. Diameter of copper wire braid	Nom. Diameter of galvanized steel wire braid	Nom. Thickness of outer sheath	Approx. Overall diameter of cable	Max. DC resistance at 20ºC	Approx. weight
mm	Nº x mm	mm	mm	mm	mm	mm	mm	Ω/km	kg/km
1.5	7 x 0.52	1.56	0.8	0.1	0.15	1.4	10.5	12.1	156

*Beside the table of specification above, the other requirements can be satisfied following to customer demand. Such as size and standards.
