Cable screen: Structure, classification & selection guide

1. Why is cable screen important?

Electrical signals in transmission systems are frequently affected by electromagnetic interference (EMI) and radio frequency interference (RFI). These are electrical noise phenomena originating from high-power motors, inverters and switching equipment.

Control signals typically have very low voltage, making them highly susceptible to environmental interference that can cause transmitted data to become distorted and inaccurate. A typical example is PLC systems (which operate based on programming algorithms to read and process data from sensors) that can easily receive incorrect values due to signal interference.

Cable screen functions as a Faraday cage (a hollow conductor in which the electric field at all points inside is zero) surrounding the conductor cores. When electromagnetic waves contact this metallic layer, they create induced current on the surface of the screen layer. This current is conducted to ground instead of penetrating inside the cable, thereby preventing electromagnetic interference from entering the internal signals.

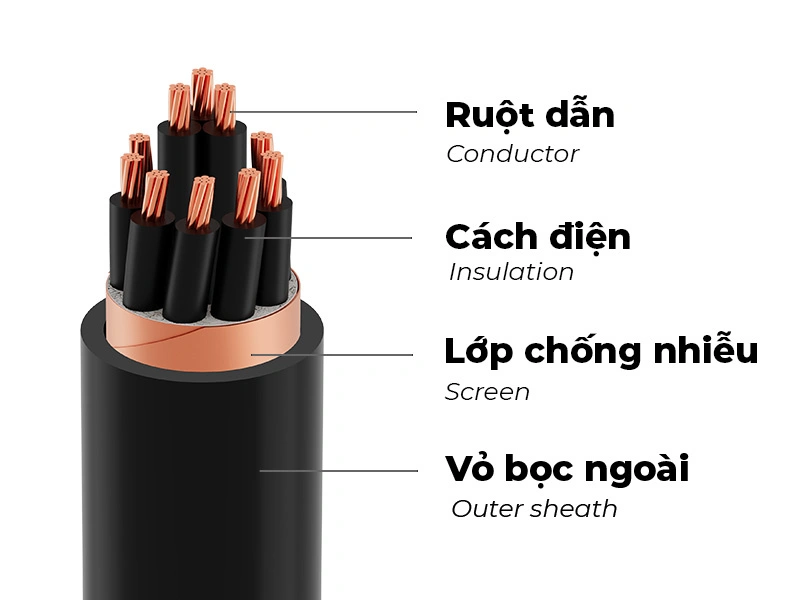

2. Structure of screen cable

To understand the operating mechanism clearly, analyzing the cable screen structure is necessary. A cable screen consists of 4 main components.

2.1. Conductor

The conductor is the main component responsible for signal transmission, typically made from copper to ensure high electrical conductivity. In humid environments or those with chemicals, tin-plated copper is used.
In terms of structure, the conductor can be solid or stranded. Stranded conductors provide greater flexibility, suitable for applications requiring frequent bending.

2.2. Insulation

Each conductor is wrapped by an insulation made from PVC or XLPE. The primary function is to prevent short circuits between conductors.

PVC is a common material with low cost and good insulation capability at temperatures below 70°C. XLPE is a more premium insulation material with heat resistance up to 90°C, exceeding PVC by approximately 30% in insulation properties.

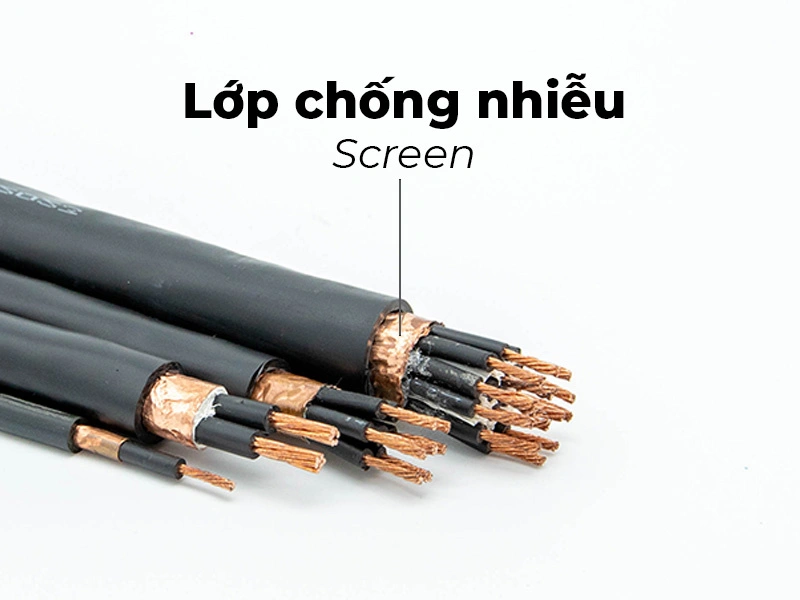

2.3. Screen

The screen is typically made from thin aluminum tape or braided copper, placed around the bundle of insulated cores. This is the critical layer that distinguishes screen cables from ordinary cables, functioning as a protective barrier for signals.

2.4. Outer sheath

The outermost sheath layer is responsible for protecting all internal cable components, providing resistance against physical impact, chemicals, moisture and UV rays. PVC is a suitable and common material for the outer sheath with good abrasion resistance.

In construction projects with strict fire prevention requirements, LSZH sheath is commonly used. When burned, LSZH produces very little smoke and does not emit toxic gases containing halogens. At Ngoc Lan Cable, we provide a complete range of cables with LSZH sheath meeting IEC 60332 standards.

3. Common types of cable screen

The effectiveness of cable screens depends heavily on the types of screen layers used. Common types include tape screen, braid screen, and combination screen.

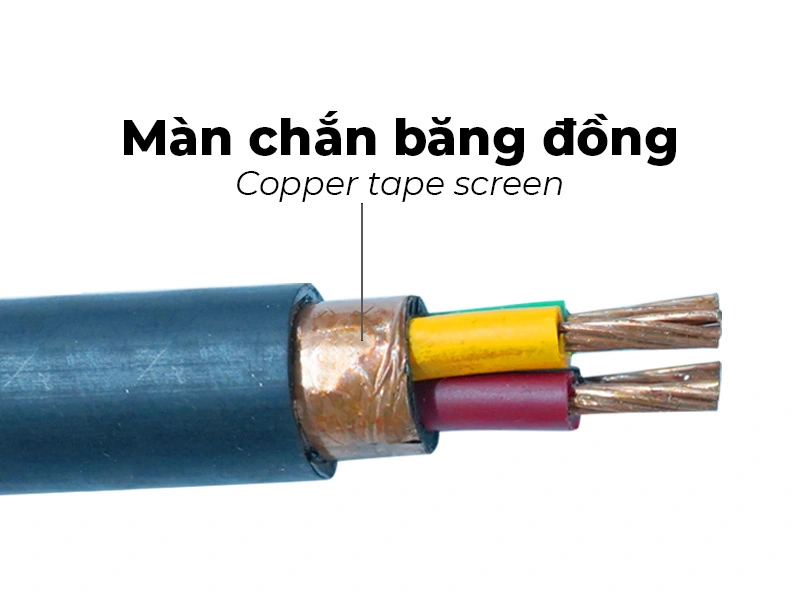

3.1. Tape screen

Tape screen use thin aluminum or copper foil with thickness ranging from 0.05 – 0.1mm coated with polyester (PET). This structure creates 100% surface coverage of the cable core, completely blocking high-frequency interference waves above 15 KHz from penetrating the conductor core.

Therefore, tape screen are suitable for environments with digital electronic equipment and high-speed switching devices. The main advantages are low cost and easy grounding through drain wires. However, poor flexibility makes tape screen prone to tearing when bent repeatedly.

For these reasons, tape screen should only be used for fixed installation applications in conduit.

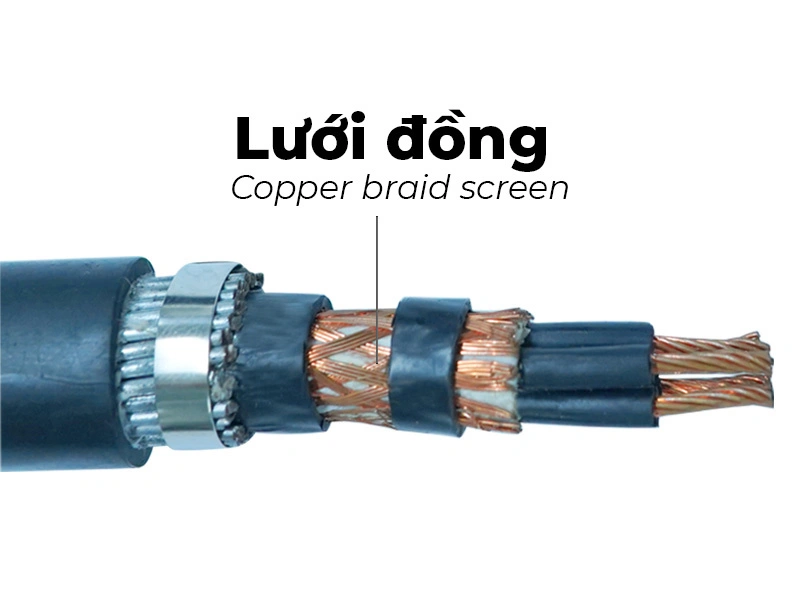

3.2. Braid screen

Braid screens are formed from copper or tin-plated copper wires with wire diameter ranging from 0.1 – 0.2 mm woven crosswise into a mesh layer surrounding the conductor core. This structure provides better mechanical durability compared to tape screen and effectively protects against low-frequency interference below 15 KHz.

Low-frequency interference commonly appears in factory environments with motors and inverters. Braid screens can withstand thousands of bending cycles without damage, making them suitable for mobile applications such as industrial robot arms.

The disadvantages are higher cost and heavier weight than tape screen. Coverage only reaches 70-95% compared to tape screen.

3.3. Combination screen (tape & braid screen)

Combination screens include an inner tape screen layer and an outer braid screen layer. This structure provides optimal protection effectiveness across the entire frequency range.

This cable type is used in environments with extremely high EMI levels. Typical examples include metallurgical plants, broadcasting stations and large data centers, where both high and low-frequency interference occur simultaneously.

Combination screen cost more than the other two types and should be considered when the environment truly requires maximum protection level.

4. Comparison table of advantages and disadvantages of tape screen and braid screen

Comparing tape screen and braid screens is an important technical decision to help you make the appropriate choice. The table below summarizes and compares the main characteristics.

As the comparison table shows, no type is perfect for all cases. For environments with high-frequency interference and fixed cable installation, tape screens are the economical choice. For cables that must move frequently or environments with low-frequency interference, using braid screen is the more optimal choice.

In many projects at automotive and food manufacturing plants, proper analysis of interference sources has helped reduce the number of signal interference-related incidents by 40-60%. The experts at Ngoc Lan Cable are always ready to consult on appropriate cable solutions for each specific environment.

5. Guide to 4 criteria for selecting appropriate cable screens

Selecting the right screen cable requires careful consideration of technical factors. Below are 4 important criteria you need to consider.

5.1. Criterion 1: Analyze the interference environment

The initial step is to identify the main interference sources in the environment to select the correct type of screen:

Low-frequency interference (<15 KHz):

• Source: High-power motors, inverters, electric welding machines, mechanical switching equipment
• Characteristics: Creates strong, slowly varying magnetic fields
• Solution: Use braid screen

High-frequency interference (>15 KHz):

• Source: Radio equipment, digital equipment, switching power supplies
• Characteristics: Electromagnetic waves propagating through space
• Solution: Use tape screen with 100% coverage

Mixed interference:

• Environment: Metallurgical plants, complex metal processing workshops
• Solution: Use combination screens

5.2. Criterion 2: Evaluate mechanical requirements and flexibility

You need to consider whether the cable will be installed in a fixed position or must move and bend continuously, as this directly affects the cable flexibility required.

Static applications (fixed cables):

Cables are installed from electrical cabinets to fixed machinery. They run through conduit or on cable trays and do not need to move throughout the operating process. Therefore, tape screens are the appropriate choice.

Dynamic applications (moving cables):

Cables must bend continuously in applications such as robot arms. Mobile equipment on rails or cable chains requires cables that can withstand thousands of bending cycles. For these reasons, braid screens are the appropriate choice for durability.

5.3. Criterion 3: Evaluate grounding methods

The effectiveness of cable screen depends entirely on proper grounding of the screen cable. Without grounding, the screen layer becomes an antenna that receives interference, increasing system noise.

Single-end grounding:

Single-end grounding is commonly used in cases involving low frequencies, where induced interference can create ground loop currents if grounded at multiple points.

Double-end grounding:

Double-end grounding is used for special cases such as long cables or environments with very strong interference, where grounding at both ends helps protect against electromagnetic interference more effectively. However, the design must be meticulous to avoid ground loop interference.

5.4. Criterion 4: Read and understand cable technical specifications

Finally, you need to know how to read and understand the symbols and technical specifications of cables provided by manufacturers to ensure accurate selection.

Screen type symbols on cables:

• CVV/Sa: Cable with aluminum foil screen
• CVV/Sc (CVV/CTS): Cable with copper tape screen

Other technical specifications requiring attention:

• Number of cores and cross-sectional area (mm²)
• Insulation material (PVC or XLPE)
• Fire resistance standards (if the project requires)
• Voltage rating and operating temperature

Reading specifications correctly helps avoid errors in selecting appropriate wire and cable products for projects.

6. Practical applications: When to use screen control cables and signal cables?

Regarding practical applications of screen cables, they are commonly divided into two main types: control cables and signal cables, each serving different purposes.

6.1. Screen control cables

Screen control cables are used to transmit low-voltage signals. They are applied in industrial equipment automation such as connecting PLCs, sensors, relays and solenoid valves to form automation systems, serving production lines.

Factory environments typically have many high-power motors and inverters operating. They generate common low-frequency interference, therefore control cables commonly use copper braid screen as the screen layer, which also provides high mechanical durability.

6.2. Screen signal cables

Screen signal cables are used to transmit data, audio and video. The critical point of these cables is ensuring absolute data integrity because digital data is highly sensitive to interference, even a small interference pulse can cause data bit errors.

7. Frequently asked questions about screen cables

To clarify common technical issues, below are answers to some frequently asked questions about screen cables that electrical engineers and technicians often raise when designing and installing systems.

8. Conclusion

Selecting the appropriate screen cable is an important technical decision that directly affects the operational stability of the entire system.

Through detailed analysis, there are 3 important points to note:

• Understanding the structure and the importance of cable screen
• Clearly understanding the differences between tape screens and braid screen to select the correct type
• Mastering the 4 criteria for selecting appropriate cable screen.

For detailed technical consultation and quotations for screen cables suitable for your project, please contact the experts at Ngoc Lan Cable. We are committed to providing high-quality products that fully meet IEC and TCVN technical standards for your industrial systems.
