AVV – 0.6/1kV

AL/PVC/PVC

Power cable, 1, 2, 3, 4 cores, aluminum conductor, PVC insulated, PVC sheathed.

STANDARDS

IEC 60502-1/ TCVN 5935-1
IEC 60228/ TCVN 6612

TECHNICAL CHARACTERISTICS

Rated voltage (Uo/U): 0.6/1kV.
Voltage test 50Hz – 5min: 3.5kV.
Max. conductor temperature in normal operation: 70ºC.
Max. conductor temperature in short-circuit for 5s max duration:
- Conductor cross-section > 300 mm²: 140ºC.
- Conductor cross-section ≤ 300 mm²: 160ºC.

Voltage Group: Low Voltage Cables

APPLICATION:

Used in buildings, cable ladders, cable trays, pipes running on walls or in walls, in closed cable boxes, in factories, buildings, sources go to mechanical equipment in pipes buried underground,…

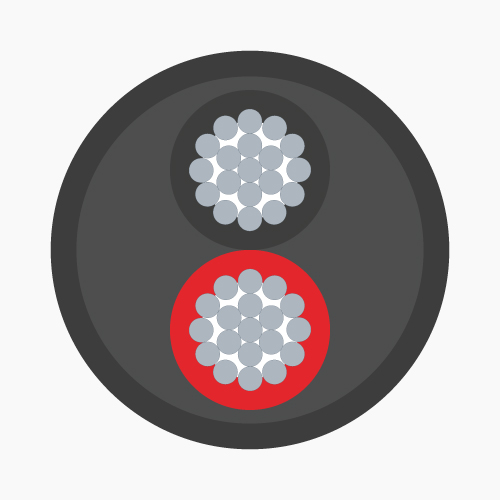

STRUCTURE:

LV-0.6-1kV-AVV-2C

1. Conductor: Hard drawn aluminum, circular compacted or concentric stranded conductor (class 2).
2. Insulation: PVC.
3. Filler: PP filling, binding tape or PVC.
4. Outer sheath: PVC.

MARKINGS ON CABLE:

1 core: NGOC LAN CABLE® – [YEAR] – AL/PVC/PVC 1C x [SIZE] mm² 0.6/1kV- #### m

2 cores: NGOC LAN CABLE® – [YEAR] – AL/PVC/PVC 2C x [SIZE] mm² 0.6/1kV- #### m

3 cores: NGOC LAN CABLE® – [YEAR] – AL/PVC/PVC 3C x [SIZE] mm² 0.6/1kV- #### m

4 cores: NGOC LAN CABLE® – [YEAR] – AL/PVC/PVC 4C x [SIZE] mm² 0.6/1kV- #### m

3 active + 1 neutral: NGOC LAN CABLE® – [YEAR] – AL/PVC/PVC 3C x [SIZE] + 1C x [SIZE] mm² 0.6/1kV – #### m

CABLE IDENTIFICATION:

Insulation:

1 core: Black or other color.
2 cores: Red, black or other color.
3 cores: Red, yellow, blue or other color.
4 cores:
- Active core: Red, yellow, blue
- Neutral core: Black

Outer sheath: Black or other color

TECHNICAL SPECIFICATIONS TABLE


AVV 1C, 2C, 3C, 4C
Mã hàng	Tiết diện danh định	Cấu trúc	Đường kính ruột dẫn	Chiều dày cách điện danh định Nom. Thickness of insulation							Chiều dày vỏ ngoài Nom. Thickness of outer shealth							Đường kính ngoài gần đúng của cáp Approx. Overall diameter of cable			Điện trở DC tối đa ở 20ºC	Trọng lượng gần đúng Approx. Weight
Product code	Nominal area	Structure	Appox. Conductor diameter	1C	2C	3C	4C	1C	2C	3C	4C	1C	2C	3C	4C	Max. DC resistance at 20ºC	1C	2C	3C	4C
Product code		mm²	Nº x mm	mm	mm							mm							mm			Ω/km	kg/km
CÁN NÉN CHẶT/ CIRCULAR COMPACTED
AVV 10	10	CC	3.8	1.0	1.0	1.0	1.0	1.4	1.8	1.8	1.8	8.6	17.2	18.1	19.6	3.080	99	275	333	404
AVV 16	16	CC	4.8	1.0	1.0	1.0	1.0	1.4	1.8	1.8	1.8	9.6	19.2	20.3	22.1	1.910	118	329	401	488
AVV 25	25	CC	5.8	1.2	1.2	1.2	1.2	1.4	1.8	1.8	1.8	11.0	20.0	21.2	23.0	1.200	161	401	502	620
AVV 35	35	CC	7.0	1.2	1.2	1.2	1.2	1.4	1.8	1.8	1.8	12.2	25.4	26.9	29.3	0.868	199	564	701	865
AVV 50	50	CC	8.2	1.4	1.4	1.4	1.4	1.4	1.9	1.9	2.0	13.8	28.8	30.6	33.6	0.641	254	725	906	1138
AVV 70	70	CC	9.7	1.4	1.4	1.4	1.4	1.4	2.0	2.1	2.2	15.3	32.0	34.2	37.7	0.443	331	933	1196	1507
AVV 95	95	CC	11.5	1.6	1.6	1.6	1.6	1.5	2.1	2.2	2.4	17.7	36.6	39.2	43.4	0.320	441	1220	1571	2004
AVV 120	120	CC	12.85	1.6	1.6	1.6	1.6	1.6	2.2	2.3	2.5	19.25	39.5	42.3	46.8	0.253	532	1447	1871	2390
AVV 150	150	CC	14.5	1.8	1.8	1.8	1.8	1.6	2.4	2.5	2.6	21.3	43.6	46.7	51.5	0.206	661	1802	2339	2967
AVV 185	185	CC	15.8	2.0	2.0	2.0	2.0	1.7	2.5	2.6	2.8	23.2	47.6	51.0	56.5	0.164	788	2140	2782	3558
AVV 240	240	CC	18.3	2.2	2.2	2.2	2.2	1.8	2.7	2.8	3.0	26.3	53.8	57.6	63.9	0.125	1026	2766	3610	4621
AVV 300	300	CC	20.7	2.4	2.4	2.4	2.4	1.9	2.9	3.0	3.3	29.3	59.8	64.1	71.3	0.100	1238	3352	4369	5621
AVV 400	400	CC	23.3	2.6	2.6	2.6	2.6	2.0	3.1	3.3	3.5	32.7	66.1	71.2	79.0	0.0778	1437	3933	5130	6546
XOẮN ĐỒNG TÂM/ CONCENTRIC STRANDED
AVV 10	10	7 x 1.35	4.05	1.0	1.0	1.0	1.0	1.4	1.8	1.8	1.8	10.25	19.50	20.47	22.04	3.080	105	354	415	492
AVV 16	16	7 x 1.70	5.10	1.0	1.0	1.0	1.0	1.4	1.8	1.8	1.8	11.30	21.60	22.74	24.58	1.910	126	438	523	628
AVV 25	25	7 x 2.14	6.42	1.2	1.2	1.2	1.2	1.4	1.8	1.8	1.9	13.02	25.04	26.45	30.04	1.200	176	589	717	921
AVV 35	35	7 x 2.52	7.56	1.2	1.2	1.2	1.2	1.4	1.8	1.9	2.0	14.16	27.32	30.21	33.10	0.868	218	708	922	1144
AVV 50	50	19 x 1.80	9.00	1.4	1.4	1.4	1.4	1.4	1.9	2.0	2.1	16.00	31.30	34.49	37.86	0.641	289	964	1213	1512
AVV 70	70	19 x 2.14	10.70	1.4	1.4	1.4	1.4	1.5	2.0	2.1	2.3	18.00	35.40	38.46	42.57	0.443	382	1241	1543	1958
AVV 95	95	19 x 2.52	12.60	1.6	1.6	1.6	1.6	1.6	2.2	2.3	2.4	20.60	40.60	44.03	48.44	0.320	517	1610	2049	2569
AVV 120	120	37 x 2.03	14.21	1.6	1.6	1.6	1.6	1.6	2.3	2.4	2.6	22.21	44.12	47.81	52.93	0.253	618	1917	2449	3113
AVV 150	150	37 x 2.30	16.10	1.8	1.8	1.8	1.8	1.7	2.5	2.6	2.8	24.80	49.70	53.35	59.07	0.206	787	2403	3076	3909
AVV 185	185	37 x 2.52	17.64	2.0	2.0	2.0	2.0	1.8	2.6	2.7	2.9	27.04	53.88	57.84	64.07	0.164	946	2828	3631	4619
AVV 240	240	61 x 2.25	20.25	2.2	2.2	2.2	2.2	1.9	2.8	3.0	3.2	30.35	60.90	65.24	72.25	0.125	1218	3588	4665	5931
AVV 300	300	61 x 2.52	22.68	2.4	2.4	2.4	2.4	2.0	3.0	3.2	3.4	33.48	67.16	71.96	79.70	0.100	1440	4391	5716	7271
AVV 400	400	61 x 2.90	26.10	2.6	2.6	2.6	2.6	2.1	3.3	3.5	3.8	37.60	76.10	81.11	90.15	0.0778	1866	5630	7338	9398


AVV 3C + 1C
Mã hàng	Tiết diện danh định	Đường kính ruột dẫn Appox. Conductor diameter			Chiều dày cách điện danh định Nom. Thickness of insulation			Chiều dày vỏ ngoài	Đường kính ngoài gần đúng của cáp	Điện trở DC tối đa ở 20ºC Max. DC resistance at 20ºC			Trọng lượng gần đúng
Mã hàng	Tiết diện danh định			Pha	Trung tính	Pha	Trung tính	Chiều dày vỏ ngoài	Đường kính ngoài gần đúng của cáp			Pha	Trọng lượng gần đúng	Trung tính
Product code	Nominal area	Active	Neutral	Active	Neutral	Nom. Thickness of outer shealth	Approx. Overall diameter of cable	Active	Neutral	Approx. Weight
Product code		mm²	mm			mm			mm	mm	Ω/km			kg/km
CÁN NÉN CHẶT
AVV 3x16 + 1x10	3x16 + 1x10	4.80	3.8	1.0	1.0	1.8	21.45	1.910	3.080	467
AVV 3x25 + 1x16	3x25 + 1x16	5.80	4.8	1.2	1.0	1.8	24.60	1.200	1.910	628
AVV 3x35 + 1x25	3x35 + 1x25	7.00	5.8	1.2	1.2	1.9	28.82	0.868	1.200	836
AVV 3x50 + 1x25	3x50 + 1x25	8.20	5.8	1.4	1.2	2.0	31.93	0.641	1.200	1031
AVV 3x50 + 1x35	3x50 + 1x35	8.20	7.0	1.4	1.2	2.0	32.65	0.641	0.868	1075
AVV 3x70 + 1x35	3x70 + 1x35	9.70	7.0	1.4	1.2	2.1	35.57	0.443	0.868	1340
AVV 3x70 + 1x50	3x70 + 1x50	9.70	8.2	1.4	1.4	2.1	36.54	0.443	0.641	1405
AVV 3x95 + 1x50	3x95 + 1x50	11.50	8.2	1.6	1.4	2.3	40.94	0.320	0.641	1779
AVV 3x95 + 1x70	3x95 + 1x70	11.50	9.7	1.6	1.4	2.3	41.84	0.320	0.443	1868
AVV 3x120 + 1x70	3x120+1x70	12.85	9.7	1.6	1.4	2.4	44.74	0.253	0.443	2174
XOẮN ĐỒNG TÂM
AVV 3x16 + 1x10	3x16 + 1x10	7 x 1.7	7 x 1.35	1.0	1.0	1.8	22.15	1.910	3.080	479
AVV 3x25 + 1x16	3x25 + 1x16	7 x 2.14	7 x 1.70	1.2	1.0	1.8	26.90	1.200	1.910	692
AVV 3x35 + 1x25	3x35 + 1x25	7 x 2.52	7 x 2.14	1.2	1.2	1.9	30.21	0.868	1.200	889
AVV 3x50 + 1x25	3x50 + 1x25	19 x 1.8	7 x 2.14	1.4	1.2	2.0	33.75	0.641	1.200	1120
AVV 3x50 + 1x35	3x50 + 1x35	19 x 1.8	7 x 2.52	1.4	1.2	2.1	35.55	0.641	0.868	1251
AVV 3x70 + 1x35	3x70 + 1x35	19 x 2.14	7 x 2.52	1.4	1.2	2.2	37.93	0.443	0.868	1446
AVV 3x70 + 1x50	3x70 + 1x50	19 x 2.14	19 x 1.80	1.4	1.4	2.2	39.04	0.443	0.641	1525
AVV 3x95 + 1x50	3x95 + 1x50	19 x 2.52	19 x 1.80	1.6	1.4	2.4	43.62	0.320	0.641	1934
AVV 3x95 + 1x70	3x95 + 1x70	19 x 2.52	19 x 2.14	1.6	1.4	2.4	44.64	0.320	0.443	2023
AVV 3x120+1x70	3x120+1x70	37 x 2.03	19 x 2.14	1.6	1.4	2.5	48.01	0.253	0.443	2275
