AXV – 0.6/1kV

AL/XLPE/PVC

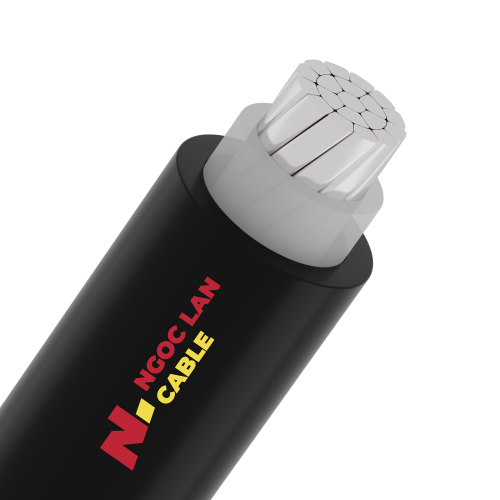

Power cable, 1, 2, 3, 4 cores, aluminum conductor, XLPE insulated, PVC sheathed.

STANDARDS

IEC 60228/ TCVN 6612
IEC 60502-1/ TCVN 5935-1

TECHNICAL CHARACTERISTICS

Rated voltage (Uo/U): 0.6/1kV.
Voltage test 50Hz – 5min: 3.5kV.
Max. conductor temperature in normal operation: 90ºC.
Max. conductor temperature in short-circuit for 5s max duration: 250ºC.

Voltage Group: Low Voltage Cables

APPLICATION:

Used in buildings, cable ladders, cable trays, pipes running on walls or in walls, in closed cable boxes, in factories, buildings, sources go to mechanical equipment in pipes buried underground,…

STRUCTURE:

LV-0.6-1kV-AXV-4C

1. Conductor: Hard drawn aluminum, circular compacted or concentric stranded conductor (class 2).
2. Color tapes: Color tapes lie between conductor and natural color insulation.
3. Insulation: XLPE.
4. Filler: PP filling, binding tape or PVC.
5. Outer sheath: PVC.

MARKINGS ON CABLE:

1 core: NGOC LAN CABLE® – [YEAR] – WB-AL/XLPE/PVC 1C x [SIZE] mm² 0.6/1kV- #### m

2 cores: NGOC LAN CABLE® – [YEAR] – WB-AL/XLPE/PVC 2C x [SIZE] mm² 0.6/1kV- #### m

3 cores: NGOC LAN CABLE® – [YEAR] – WB-AL/XLPE/PVC 3C x [SIZE] mm² 0.6/1kV- #### m

4 cores: NGOC LAN CABLE® – [YEAR] – WB-AL/XLPE/PVC 4C x [SIZE] mm² 0.6/1kV- #### m

3 active cores + 1 neutral core: NGOC LAN CABLE® – [YEAR] – AL/XLPE/PVC/PVC 3C x [SIZE] + 1C x [SIZE] mm² 0.6/1kV- #### m

CABLE IDENTIFICATION:

Color tapes:

2 cores: Red and black.
3 cores: Red, yellow, blue.
4 cores:
- Active core: Red, yellow, blue.
- Neutral core: Black or no color tapes.

Insulation: Natural or black color.

Outer sheath: Black.

TECHNICAL SPECIFICATIONS TABLE


AXV 1C, 2C, 3C, 4C
Mã hàng	Tiết diện danh định	Cấu trúc	Đường kính ruột dẫn	Chiều dày cách điện danh định	Chiều dày vỏ ngoài Nom. Thickness of outer shealth							Đường kính ngoài gần đúng của cáp Approx. Overall diameter of cable							Điện trở DC tối đa ở 20ºC	Dòng điện cho phép Permissble current		Trọng lượng gần đúng Approx. Weight
Product code	Nominal area	Structure	Appox. Conductor diameter	Nom. Thickness of insulation	1C	2C	3C	4C	1C	2C	3C	4C	Max. DC resistance at 20ºC	1C	2C	3C	4C	1C	2C	3C	4C
Product code		mm²	Nº x mm	mm	mm	mm							mm							Ω/km	A		kg/km
CÁN NÉN CHẶT/CIRCULAR COMPACTED
AXV 16	16	CC	4.80	0.7	1.4	1.8	1.8	1.8	9.0	18.0	19.0	20.6	1.910	90	91	77	77	100	285	343	415
AXV 25	25	CC	5.80	0.9	1.4	1.8	1.8	1.8	10.4	20.8	22.0	24.0	1.200	121	108	97	97	139	386	474	581
AXV 35	35	CC	7.00	0.9	1.4	1.8	1.8	1.9	11.6	23.2	24.6	30.1	0.868	150	135	120	120	174	478	593	824
AXV 50	50	CC	8.20	1.0	1.4	1.9	1.9	2.0	13.0	29.2	30.8	33.7	0.641	184	164	146	146	219	687	841	1043
AXV 70	70	CC	9.70	1.1	1.4	2.0	2.1	2.2	14.7	32.8	34.9	38.2	0.443	237	211	187	187	296	905	1140	1421
AXV 95	95	CC	11.50	1.1	1.5	2.1	2.2	2.3	16.7	36.6	39.0	42.8	0.320	289	257	227	227	385	1142	1449	1814
AXV 120	120	CC	12.85	1.2	1.5	2.2	2.3	2.5	18.3	39.9	42.5	46.9	0.253	337	300	263	263	468	1390	1760	2231
AXV 150	150	CC	14.50	1.4	1.6	2.4	2.5	2.6	20.5	44.4	47.4	52.1	0.206	389	346	304	304	594	1732	2214	2788
AXV 185	185	CC	15.80	1.6	1.7	2.5	2.6	2.8	22.4	48.0	51.2	56.6	0.164	447	397	347	347	711	2039	2617	3325
AXV 240	240	CC	18.30	1.7	1.8	2.7	2.8	3.0	25.5	54.2	57.9	64.0	0.125	530	470	409	409	933	2638	3403	4331
AXV 300	300	CC	20.70	1.8	1.9	2.9	3.0	3.2	28.1	59.4	63.5	70.2	0.100	613	543	471	471	1109	3138	4045	4598
AXV 400	400	CC	23.30	2.0	2.0	3.1	3.2	3.5	31.3	65.8	70.4	78.1	0.0778	740	654	566	566	1415	3947	5118	6683
AXV 500	500	CC	26.40	2.2	2.1	3.3	3.5	3.8	35.0	73.2	78.5	87.1	0.0605	856	756	652	652	1717	4798	6251	8165
XOẮN ĐỒNG TÂM/CONCENTRIC STRANDED
AXV 16	16	7x1.70	5.10	0.7	1.4	1.8	1.8	1.8	9.3	18.6	19.6	21.3	1.910	90	91	77	77	109	337	370	449
AXV 25	25	7x2.14	6.42	0.9	1.4	1.8	1.8	1.8	11.0	22.0	23.4	25.5	1.200	121	108	97	97	155	478	528	649
AXV 35	35	7x2.52	7.56	0.9	1.4	1.8	1.9	2.0	12.2	24.3	29.0	31.7	0.868	150	135	120	120	194	595	751	928
AXV 50	50	19x1.80	9.00	1.0	1.4	1.8	2.0	2.1	13.8	30.6	32.8	35.8	0.641	184	164	146	146	253	851	976	1213
AXV 70	70	19x2.14	10.70	1.1	1.5	2.1	2.2	2.3	15.9	35.0	37.3	40.8	0.443	237	211	187	187	341	1149	1297	1618
AXV 95	95	19x2.52	12.60	1.1	1.5	2.2	2.3	2.4	17.8	39.0	41.6	45.6	0.320	289	257	227	227	440	1469	1662	2084
AXV 120	120	37x2.03	14.21	1.2	1.6	2.3	2.4	2.6	19.8	42.8	45.7	50.4	0.253	337	300	263	263	548	1793	2033	2579
AXV 150	150	37x2.25	15.75	1.4	1.6	2.5	2.6	2.7	21.8	47.1	50.3	55.3	0.206	389	346	304	304	661	2187	2480	3121
AXV 185	185	37x2.52	17.64	1.6	1.7	2.6	2.8	2.9	24.2	51.9	55.6	61.2	0.164	447	397	347	347	822	2678	3063	3862
AXV 240	240	61x2.25	20.25	1.7	1.8	2.8	3.0	3.2	27.3	57.9	62.1	68.6	0.125	530	470	409	409	1052	3394	3883	4938
AXV 300	300	61x2.52	22.68	1.8	1.9	3.0	3.2	3.4	30.1	63.6	68.2	75.4	0.100	613	543	471	471	1293	4148	4745	6041
AXV 400	400	61x2.90	26.10	2.0	2.1	3.3	3.5	3.5	34.3	71.8	77.0	78.1	0.0778	740	654	566	566	1692	5367	6138	6021
AXV 500	500	61x3.20	28.80	2.2	2.2	3.5	3.7	3.8	37.6	78.4	84.1	87.1	0.0605	856	756	652	652	2040	6447	7372	7441


AXV 3C + 1C
Mã hàng	Tiết diện danh định	Số sợi/Đường kính ruột dẫn Number of wire/Appox. Conductor diameter		Chiều dày cách điện danh định Nom. Thickness of insulation		Chiều dày vỏ ngoài	Đường kính ngoài gần đúng của cáp	Điện trở DC tối đa ở 20ºC Max. DC resistance at 20ºC		Dòng điện cho phép	Trọng lượng gần đúng
Mã hàng	Tiết diện danh định	Pha	Trung tính	Pha	Trung tính	Chiều dày vỏ ngoài	Đường kính ngoài gần đúng của cáp	Pha	Trung tính	Dòng điện cho phép	Trọng lượng gần đúng
Product code	Nominal area	Active	Neutral	Active	Neutral	Nom. Thickness of outer shealth	Approx. Overall diameter of cable	Active	Neutral	Permissble current	Approx. Weight
	mm²	Nº/mm	Nº/mm	mm	mm	mm	mm	Ω/km	Ω/km	A	kg/km
CÁN NÉN CHẶT/CIRCULAR COMPACTED
AXV 3x25+1x16	3x25+1x16	5.80	4.80	0.9	0.7	1.8	23.1	1.200	1.910	97	634
AXV 3x35+1x16	3x35+1x16	7.00	4.80	0.9	0.7	1.8	25.3	0.868	1.910	120	780
AXV 3x50+1x25	3x50+1x25	8.20	5.80	1.0	0.9	2.0	32.1	0.641	1.200	146	1130
AXV 3x50+1x35	3x50+1x35	8.20	7.00	1.0	0.9	2.0	32.8	0.641	0.868	146	1183
AXV 3x70+1x35	3x70+1x35	9.70	7.00	1.1	0.9	2.1	36.1	0.443	0.868	187	1517
AXV 3x70+1x50	3x70+1x50	9.70	8.20	1.1	1.0	2.1	37.0	0.443	0.641	187	1586
AXV 3x95+1x50	3x95+1x50	11.50	8.20	1.1	1.0	2.3	40.6	0.320	0.641	227	1984
AXV 3x95+1x70	3x95+1x70	11.50	9.70	1.1	1.1	2.3	41.7	0.320	0.443	227	2096
AXV 3x120+1x70	3x120+1x70	12.85	9.70	1.2	1.1	2.4	44.7	0.253	0.443	263	2471
AXV 3x120+1x95	3x120+1x95	12.85	11.50	1.2	1.1	2.4	45.8	0.253	0.320	263	2598
AXV 3x150+1x95	3x150+1x95	14.50	11.50	1.4	1.1	2.6	49.9	0.206	0.320	304	3141
AXV 3x185+1x95	3x185+1x95	15.80	11.50	1.6	1.1	2.7	53.2	0.164	0.320	347	3614
AXV 3x185+1x120	3x185+1x120	15.80	12.85	1.6	1.2	2.7	54.1	0.164	0.253	347	3741
AXV 3x240+1x120	3x240+1x120	18.30	12.85	1.7	1.2	2.9	59.4	0.125	0.253	409	4658
AXV 3x240+1x150	3x240+1x150	18.30	14.50	1.7	1.4	2.9	60.7	0.125	0.206	409	4838
AXV 3x300+1x150	3x300+1x150	20.70	14.50	1.8	1.4	3.1	65.8	0.100	0.206	471	5693
AXV 3x300+1x185	3x300+1x185	20.70	15.80	1.8	1.6	3.1	66.8	0.100	0.164	471	5856
AXV 3x400+1x185	3x400+1x185	23.30	15.80	2.0	1.6	3.3	72.7	0.0778	0.164	566	6538
AXV 3x400+1x240	3x400+1x240	23.30	18.30	2.0	1.8	3.4	74.5	0.0778	0.125	566	6672
AXV 3x400+1x300	3x400+1x300	23.30	20.70	2.0	1.8	3.4	76.1	0.0778	0.100	566	6785
XOẮN ĐỒNG TÂM/CONCENTRIC STRANDED
AXV 3x25+1x16	3x25+1x16	7/ 6.42	7/ 5.10	0.9	0.7	1.8	24.5	1.200	1.910	97	598
AXV 3x35+1x16	3x35+1x16	7/ 7.56	7/ 5.10	0.9	0.7	1.9	29.7	0.868	1.910	120	814
AXV 3x50+1x25	3x50+1x25	19/ 9.00	7/ 6.42	1.0	0.9	2.0	33.9	0.641	1.200	146	1082
AXV 3x50+1x35	3x50+1x35	19/ 9.00	7/ 7.56	1.0	0.9	2.1	34.8	0.641	0.868	146	1144
AXV 3x70+1x35	3x70+1x35	19/ 10.70	7/ 7.56	1.1	0.9	2.2	38.5	0.443	0.868	187	1434
AXV 3x70+1x50	3x70+1x50	19/ 10.70	19/ 9.00	1.1	1.0	2.2	39.5	0.443	0.641	187	1506
AXV 3x95+1x50	3x95+1x50	19/ 12.60	19/ 9.00	1.1	1.0	2.3	43.1	0.320	0.641	227	1853
AXV 3x95+1x70	3x95+1x70	19/ 12.60	19/ 10.70	1.1	1.1	2.4	44.5	0.320	0.443	227	1971
AXV 3x120+1x70	3x120+1x70	37/ 14.00	19/ 10.70	1.2	1.1	2.5	47.6	0.253	0.443	263	2286
AXV 3x120+1x95	3x120+1x95	37/ 14.00	19/ 12.60	1.2	1.1	2.5	48.7	0.253	0.320	263	2403
AXV 3x150+1x95	3x150+1x95	37/ 16.10	19/ 12.60	1.4	1.1	2.7	53.7	0.206	0.320	304	2952
AXV 3x185+1x95	3x185+1x95	37/ 17.64	19/ 12.60	1.6	1.1	2.8	57.4	0.164	0.320	347	3402
AXV 3x185+1x120	3x185+1x120	37/ 17.64	37/ 14.00	1.6	1.2	2.8	58.3	0.164	0.253	347	3510
AXV 3x240+1x120	3x240+1x120	61/ 20.25	37/ 14.00	1.7	1.2	3.0	63.8	0.125	0.253	409	4290
AXV 3x240+1x150	3x240+1x150	61/ 20.25	37/ 16.10	1.7	1.4	3.1	65.6	0.125	0.206	409	4504
AXV 3x300+1x150	3x300+1x150	61/ 22.68	37/ 16.10	1.8	1.4	3.2	70.5	0.100	0.206	471	5297
AXV 3x300+1x185	3x300+1x185	61/ 22.68	37/ 17.64	1.8	1.6	3.3	71.9	0.100	0.164	471	5486
AXV 3x400+1x185	3x400+1x185	61/ 26.10	37/ 17.64	2.0	1.6	3.5	79.2	0.0778	0.164	566	6782
AXV 3x400+1x240	3x400+1x240	61/ 26.10	61/20.25	2.0	1.8	3.6	81.3	0.0778	0.125	566	7099
AXV 3x400+1x300	3x400+1x300	61/ 26.10	61/ 22.68	2.0	1.8	3.6	82.7	0.0778	0.100	566	7360
