Cấu trúc LV - 0.6/1kV - AXV/DSTA 3C+1C cc

AXV/DSTA – 0.6/1kV

Al/XLPE/PVC/DSTA/PVC

Power cable, 4 core, reduced neutral core, aluminum conductor, XLPE insulated, double galvanized steel tape, PVC sheathed.

STANDARDS

IEC 60228/ TCVN 6612
IEC 60502-1/ TCVN 5935-1

TECHNICAL CHARACTERISTICS

Rated voltage (Uo/U): 0.6/1kV.
Voltage test 50Hz – 5min: 3.5kV.
Max. conductor temperature in normal operation: 90ºC.
Max. conductor temperature in short-circuit for 5s max duration: 250ºC.

Voltage Group: Low Voltage Cables

APPLICATION:

Used in buildings, cable ladders, cable trays, pipes running on walls or in walls, in closed cable boxes, in factories, buildings, sources go to mechanical equipment in pipes buried underground…

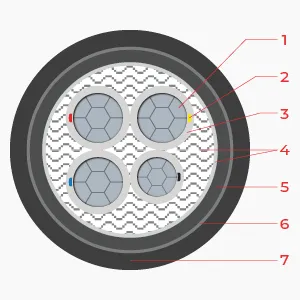

STRUCTURE:

Cấu trúc LV - 0.6/1kV - AXV/DSTA 3C + 1C

1. Conductor: Hard drawn aluminum, circular compacted conductor (class 2).

2. Color tapes: Color tapes lie between insulation screen and metallic screen.

3. Insulation: XLPE.

4. Filler: PP filling, binding tape or PVC.

5. Inner covering: PVC.

6. Armour: Double galvanized steel tape.

7. Outer sheath: PVC.

MARKINGS ON CABLE:

NGOC LAN CABLE® – [YEAR] – AL/XLPE/PVC/DSTA/PVC 3C x [SIZE] + 1C x [SIZE] mm² 0.6/1kV – #### m

CABLE IDENTIFICATION:

Color tapes:

Active core: Red, yellow, blue.
Neutral core: Black.

Insulation: Natural color.

Outer sheath: Black or other color.

TECHNICAL SPECIFICATIONS TABLE


Tiết diện danh định	Đường kính ruột dẫn Appox. Conductor diameter		Chiều dày cách điện danh định Nom. Thickness of insulation		Chiều dày lớp bọc trong	Chiều dày vỏ ngoài	Chiều dày băng thép	Đường kính ngoài gần đúng của cáp	Điện trở DC tối đa ở 20ºC Max. DC resistance at 20ºC		Trọng lượng gần đúng
Tiết diện danh định	Pha	Trung tính	Pha	Trung tính	Chiều dày lớp bọc trong	Chiều dày vỏ ngoài	Chiều dày băng thép	Đường kính ngoài gần đúng của cáp	Pha	Trung tính	Trọng lượng gần đúng
Nominal area	Active	Neutral	Active	Neutral	Nom. Thickness of inner covering	Nom. Thickness of outer shealth	Nom. Thickness of steel tape screen	Approx. Overall diameter of cable	Active	Neutral	Approx. Weight
mm²	mm			mm			mm	mm	mm	mm	Ω/km	kg/km
3x16+1x10	4.80	3.80	0.7	0.7	1.0	1.8	0.2	22.5	1.910	3.080	818
3x25+1x16	5.80	4.80	0.9	0.7	1.0	1.8	0.2	25.9	1.200	1.910	967
3x35+1x16	7.00	4.80	0.9	0.7	1.0	1.9	0.2	28.3	0.868	1.910	1727
3x50+1x25	8.20	5.80	1.0	0.9	1.2	2.1	0.5	36.7	0.641	1.200	1803
3x50+1x35	8.20	7.00	1.0	0.9	1.2	2.2	0.5	37.6	0.641	0.868	2152
3x70+1x35	9.70	7.00	1.1	0.9	1.2	2.3	0.5	40.9	0.443	0.868	2228
3x70+1x50	9.70	8.20	1.1	1.0	1.4	2.3	0.5	41.6	0.443	0.641	2653
3x95+1x50	11.50	8.20	1.1	1.0	1.4	2.4	0.5	45.7	0.320	0.641	2791
3x95+1x70	11.50	9.70	1.1	1.1	1.4	2.5	0.5	46.8	0.320	0.443	3163
3x120+1x70	12.85	9.70	1.2	1.1	1.4	2.6	0.5	49.8	0.253	0.387	3289
3x120+1x95	12.85	11.50	1.2	1.1	1.4	2.6	0.5	51.0	0.253	0.193	3803
3x150+1x95	14.30	11.50	1.4	1.1	1.4	2.7	0.5	54.6	0.206	0.193	4354
3x150+1x120	14.30	12.85	1.4	1.2	1.6	2.8	0.5	56.0	0.206	0.253	4506
3x185+1x95	15.80	11.50	1.6	1.1	1.6	2.9	0.5	58.7	0.164	0.320	5336
3x185+1x120	15.80	12.85	1.6	1.2	1.6	2.9	0.5	59.7	0.164	0.253	5514
3x240+1x120	18.30	12.85	1.7	1.2	1.6	3.1	0.5	64.9	0.125	0.253	6283
3x240+1x150	18.30	14.30	1.7	1.4	1.6	3.1	0.5	66.1	0.125	0.206	6520
3x300+1x185	20.70	15.80	1.8	1.6	1.8	3.3	0.5	72.8	0.100	0.164	7166
3x300+1x240	20.70	18.30	1.8	1.7	1.8	3.4	0.5	74.6	0.100	0.125	8120
3x400+1x240	23.30	18.30	2.0	1.7	1.8	3.6	0.5	82.0	0.0778	0.125	9132
