CVV – 350/500V
Power cable, 2, 3, 4, 5 cores, copper conductor, PVC insulated, PVC sheathed
STANDARDS
- IEC 60228 / TCVN 6612
- IEC 60227/ TCVN 6610
TECHNICAL CHARACTERISTICS
- Rated voltage (Uo/U): 350/500V.
- Voltage test 50Hz – 5min: 2 kV
- Max. conductor temperature in normal operation: 70ºC
APPLICATION:
Used for lighting systems, household, infrastruture system.

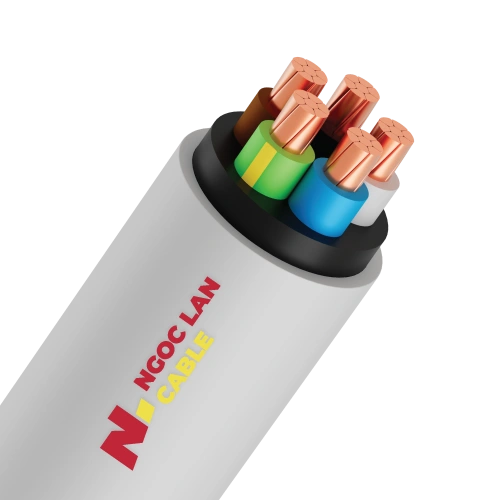

STRUCTURE:
1. Conductor: Copper conductor, class 2, circular compacted or non-compacted.
2. Insulation: PVC.
3. Filler: PVC.
4. Outer sheath: PVC.
MARKINGS ON CABLE:
2 cores: NGOC LAN CABLE® – [YEAR] – Cu/PVC/PVC 2C x [SIZE] mm² 350/500V – #### m
3 cores: NGOC LAN CABLE® – [YEAR] – Cu/PVC/PVC 3C x [SIZE] mm² 350/500V – #### m
4 cores: NGOC LAN CABLE® – [YEAR] – Cu/PVC/PVC 4C x [SIZE] mm² 350/500V – #### m
5 cores: NGOC LAN CABLE® – [YEAR] – Cu/PVC/PVC 5C x [SIZE] mm² 350/500V – #### m
CABLE IDENTIFICATION:
Insulation:
- 2 cores: Red, black or other color.
- 3 cores: Black, brown, green-yellow or other color.
- 4 cores: Black, gray, brown, green-yellow or other color.
- 5 cores: Black, blue, gray, brown, green-yellow or other color.
Outer sheath: Black, gray or other color.
TECHNICAL SPECIFICATIONS TABLE
*Beside the table of specification above, the other requirements can be satisfied following to customer demand, such as, size & standards.
