WB-AXe – 3.6/6(7.2)KV

WB/Al/Semi/XLPE

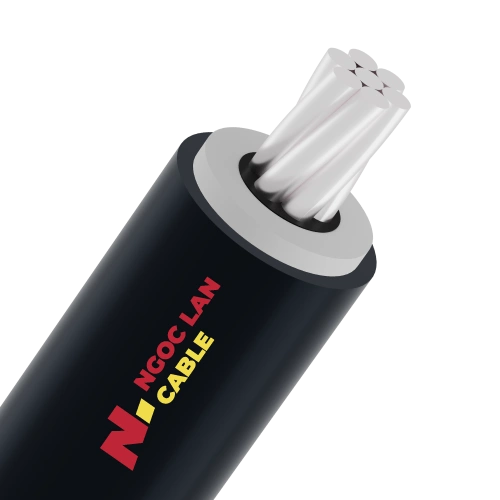

Power cable, single core, aluminum conductor with water blocking, conductor screen, XLPE insulated

STANDARDS

Used for power transmission lines and power distribution…

Cấu trúc MV - 3.6/6(7.2)kV - WB-AXe 1C

1. Conductor: Aluminum conductor (class 2), circular compacted or concentric stranded conductor, water blocking system of conductor.

2. Conductor screen: Semi – conductive compound.

3. Insulation: XLPE.

NGOC LAN CABLE® – [YEAR] – WB-Al/Sc/XLPE 1C x [SIZE] mm² 3.6/6(7.2)KV – #### m

Insulation: Black.


Tiết diện danh định	Cấu trúc	Đường kính ruột dẫn	Chiều dày lớp bán dẫn	Chiều dày cách điện danh định	Đường kính ngoài gần đúng của cáp	Điện trở DC tối đa ở 20ºC	Trọng lượng gần đúng
Nominal area	Structure	Appox. Conductor diameter	Nom. Thickness of semiconductor	Nom. Thickness of insulation	Approx. Overall diameter of cable	Max. DC resistance at 20ºC	Approx. Weight
mm²	Nº x mm	mm	mm	mm	mm	Ω/km	kg/km
CÁN NÉN CHẶT/ CIRCULAR COMPACTED
25	CC	5.8	0.6	2.5	12.00	1.200	150
35	CC	7.0	0.6	2.5	13.20	0.868	186
50	CC	8.2	0.6	2.5	14.40	0.641	227
70	CC	9.7	0.6	2.5	15.90	0.443	300
95	CC	11.5	0.6	2.5	17.70	0.320	381
120	CC	12.9	0.6	2.5	19.05	0.253	458
150	CC	14.3	0.6	2.5	20.50	0.206	559
185	CC	15.8	0.6	2.5	22.00	0.164	651
240	CC	18.3	0.6	2.6	24.70	0.125	846
300	CC	20.7	0.6	2.8	27.50	0.100	1017
XOẮN ĐỒNG TÂM/ CONCENTRIC STRANDED
25	7 x 2.14	6.42	0.6	2.5	12.62	1.200	166
35	7 x 2.52	7.56	0.6	2.5	13.76	0.868	206
50	19 x 1.80	9.00	0.6	2.5	15.20	0.641	261
70	19 x 2.14	10.70	0.6	2.5	16.90	0.443	338
95	19 x 2.52	12.60	0.6	2.5	18.80	0.320	436
120	37 x 2.03	14.21	0.6	2.5	20.41	0.253	528
150	37 x 2.25	15.75	0.6	2.5	21.95	0.206	625
185	37 x 2.52	17.64	0.6	2.5	23.84	0.164	757
240	61 x 2.25	20.25	0.6	2.6	26.65	0.125	966
300	61 x 2.52	22.68	0.6	2.8	29.48	0.100	1195
