WB-AXHe – 8.7/15(17.5)kV

WB/Al/Semi/XLPE/HDPE

Power cable, single core, aluminum conductor with water blocking, conductor screen, XLPE insulated, HDPE sheathed.

STANDARDS

Used for power transmission lines and power distribution…

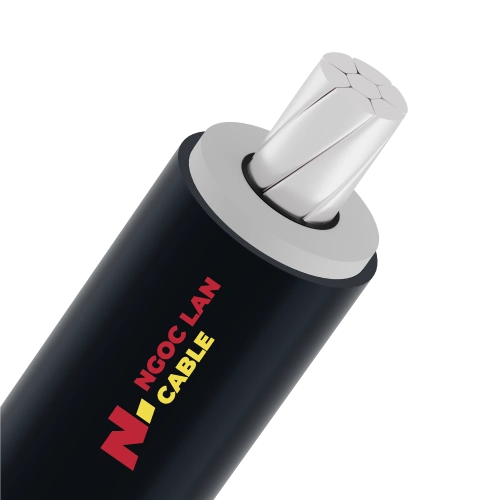

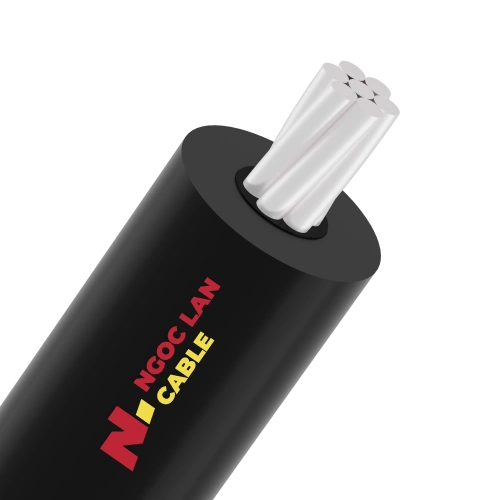

Cấu trúc MV - 8.7/15(17.5)kV - WB-AXHe 1C-x

1. Conductor: Hard drawn aluminum, circular compacted or concentric stranded conductor (class 2), water blocking system of conductor.

2. Conductor screen: Semi – conductive compound.

3. Insulation: XLPE

4. Outer sheath: HDPE.

NGOC LAN CABLE® – [YEAR] – WB-Al/Sc/XLPE/HDPE 1C x [SIZE] mm² 8.7/15(17.5)kV – #### m

Insulation: Natural color

Outer sheath: Black.


Tiết diện danh định	Cấu trúc	Đường kính ruột dẫn	Chiều dày lớp bán dẫn	Chiều dày cách điện danh định	Chiều dày vỏ ngoài	Đường kính ngoài gần đúng của cáp	Điện trở DC tối đa ở 20ºC	Trọng lượng gần đúng
Nominal area	Structure	Appox. Conductor diameter	Nom.Thickness of semiconductor	Nom. Thickness of insulation	Nom. Thickness of outer shealth	Approx. Overall diameter of cable	Max. DC resistance at 20ºC	Approx. Weight
mm²	Nº x mm	mm	mm	mm	mm	mm	Ω/km	kg/km
CÁN NÉN CHẶT/ CIRCULAR COMPACTED
25	CC	5.80	0.6	4.5	1.2	18.40	1.200	159
35	CC	7.00	0.6	4.5	1.2	19.60	0.868	176
50	CC	8.20	0.6	4.5	1.2	20.80	0.641	193
70	CC	9.70	0.6	4.5	1.2	22.30	0.443	213
95	CC	11.50	0.6	4.5	1.2	24.10	0.320	238
120	CC	12.85	0.6	4.5	1.2	25.45	0.253	257
150	CC	14.30	0.6	4.5	1.2	26.90	0.206	277
185	CC	15.80	0.6	4.5	1.2	28.40	0.164	298
240	CC	18.30	0.6	4.5	1.2	30.90	0.125	333
300	CC	20.70	0.6	4.5	1.2	33.30	0.100	366
XOẮN ĐỒNG TÂM/ CONCENTRIC STRANDED
25	7 x 2.14	6.42	0.6	4.5	1.2	19.02	1.200	350
35	7 x 2.52	7.56	0.6	4.5	1.2	20.16	0.868	403
50	19 x 1.80	9.00	0.6	4.5	1.2	21.60	0.641	475
70	19 x 2.14	10.70	0.6	4.5	1.2	23.30	0.443	571
95	19 x 2.52	12.60	0.6	4.5	1.2	25.20	0.320	691
120	37 x 2.03	14.21	0.6	4.5	1.2	26.81	0.253	801
150	37 x 2.25	15.75	0.6	4.5	1.2	28.35	0.206	916
185	37 x 2.52	17.64	0.6	4.5	1.2	30.24	0.164	1069
240	61 x 2.25	20.25	0.6	4.5	1.2	32.85	0.125	1300
300	61 x 2.52	22.68	0.6	4.5	1.2	35.28	0.100	1538
