CVV – 0.6/1kV – Control Cable

Cu/PVC/PVC

Control cable, multi-cores, PVC insulated, PVC sheathed

STANDARDS

IEC 60228 / TCVN 6612
IEC 60227 / TCVN 6610
IEC 60502
TCVN 5935

TECHNICAL CHARACTERISTICS

Rated voltage (Uo/U): 0.6/1kV.
Voltage test 50Hz – 5min: 3.5kV.
Max. conductor temperature in normal operation: 70ºC.
Max. conductor temperature in short-circuit for 5s max duration:
- Conductor cross-section > 300 mm²: 140ºC
- Conductor cross-section ≤ 300 mm²: 160ºC

Voltage Group: Low Voltage Cables

Function Group: Control cables

APPLICATION:

Used in buildings, cable ladders, cable trays, pipes running on walls or in walls, in closed cable boxes, in factories, buildings, sources go to mechanical equipment in pipes buried underground…

STRUCTURE:

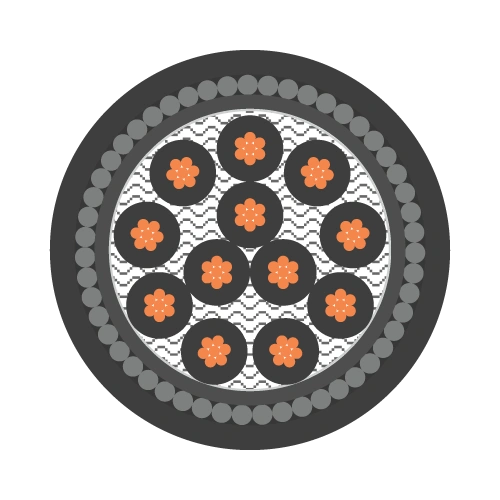

Cấu trúc LV - 0.6/1kV - CVV cáp điều khiển

1. Conductor: Annealed copper, concentric stranded conductor (class 2).
2. Insulation: PVC.
3. Filler: PP filling or PVC.
4. Outer sheath: PVC.

MARKINGS ON CABLE:

NGOC LAN CABLE® – [YEAR] – Cu/PVC/PVC [N]C x [SIZE] mm² 0.6/1kV- #### m

CABLE IDENTIFICATION:

Insulation:

Phase identification: By number markings, black color

Outer sheath: Black.

TECHNICAL SPECIFICATIONS TABLE


Số lõi	Tiết diện danh định	Cấu trúc	Đường kính ruột dẫn	Chiều dày cách điện danh định	Chiều dày vỏ ngoài	Đường kính ngoài gần đúng của cáp	Điện trở DC tối đa ở 20ºC	Điện trở cách điện nhỏ nhất ở 70ºC	Dòng điện cho phép
Number of core	Nominal area	Structure	Appox. Conductor diameter	Nom. Thickness of insulation	Nom. Thickness of outer shealth	Approx. overall diameter of cable	Max. DC resistance at 20ºC	Min. Insulation resistance at 70ºC	Permissble current
Nº	mm²	N º x mm	mm	mm	mm	mm	Ω/km	MΩkm	A
2	1.5	7 x 0.53	1.59	0.8	1.5	9.38	12.10	0.01	20
		2.5	7 x 0.67	2.01	0.8	1.5	10.22	7.41	0.009	27
		3.5	7 x 0.80	2.40	0.8	1.5	11.00	5.30	0.0077	32
		4	7 x 0.85	2.55	1.0	1.5	12.10	4.61	0.0077	35
4	1.5	7 x 0.53	1.59	0.8	1.5	10.72	12.10	0.01	18
		2.5	7 x 0.67	2.01	0.8	1.5	11.74	7.41	0.009	25
		3.5	7 x 0.80	2.40	0.8	1.5	12.68	5.30	0.0077	28
		4	7 x 0.85	2.55	1.0	1.5	14.01	4.61	0.0077	33
5	1.5	7 x 0.53	1.59	0.8	1.5	11.61	12.10	0.01	18
		2.5	7 x 0.67	2.01	0.8	1.5	12.75	7.41	0.009	25
		3.5	7 x 0.80	2.40	0.8	1.5	13.80	5.30	0.0077	28
		4	7 x 0.85	2.55	1.0	1.5	15.29	4.61	0.0077	33
7	1.5	7 x 0.53	1.59	0.8	1.5	12.57	12.10	0.01	18
		2.5	7 x 0.67	2.01	0.8	1.5	13.83	7.41	0.009	25
		3.5	7 x 0.80	2.40	0.8	1.5	15.00	5.30	0.0077	28
		4	7 x 0.85	2.55	1.0	1.5	16.65	4.61	0.0077	33
10	1.5	7 x 0.53	1.59	0.8	1.5	15.76	12.10	0.01	18
		2.5	7 x 0.67	2.01	0.8	1.5	17.44	7.41	0.009	25
		3.5	7 x 0.80	2.40	0.8	1.5	19.00	5.30	0.0077	28
		4	7 x 0.85	2.55	1.0	1.5	21.40	4.61	0.0077	33
11	4	7 x 0.85	2.55	1.0	1.5	22.00	4.61	0.0077	33
12	1.5	7 x 0.53	1.59	0.8	1.5	16.27	12.10	0.01	18
		2.5	7 x 0.67	2.01	0.8	1.5	18.02	7.41	0.009	25
		3.5	7 x 0.80	2.40	0.8	1.5	19.64	5.30	0.0077	28
		4	7 x 0.85	2.55	1.0	1.7	22.33	4.61	0.0077	33
15	1.5	7 x 0.53	1.59	0.8	1.5	17.99	12.10	0.01	18
		2.5	7 x 0.67	2.01	0.8	1.5	19.97	7.41	0.009	25
		3.5	7 x 0.80	2.40	0.8	1.5	21.80	5.30	0.0077	28
		4	7 x 0.85	2.55	1.0	1.7	24.79	4.61	0.0077	33
19	1.5	7 x 0.53	1.59	0.8	1.5	18.59	12.10	0.01	18
		2.5	7 x 0.67	2.01	0.8	1.5	21.05	7.41	0.009	25
		3.5	7 x 0.80	2.40	0.8	1.6	23.20	5.30	0.0077	28
		4	7 x 0.85	2.55	1.0	1.8	26.35	4.61	0.0077	33
24	1.5	7 x 0.53	1.59	0.8	1.5	22.14	12.10	0.01	18
		2.5	7 x 0.67	2.01	0.8	1.5	24.66	7.41	0.009	25
		3.5	7 x 0.80	2.40	0.8	1.6	27.20	5.30	0.0077	28
		4	7 x 0.85	2.55	1.0	1.8	30.90	4.61	0.0077	33
30	1.5	7 x 0.53	1.59	0.8	1.5	23.45	12.10	0.01	18
		2.5	7 x 0.67	2.01	0.8	1.5	26.14	7.41	0.009	25
		3.5	7 x 0.80	2.40	0.8	1.6	28.84	5.30	0.0077	28
		4	7 x 0.85	2.55	1.0	1.8	32.77	4.61	0.0077	33
