CXV – 0.6/1kV

Cu/XLPE/PVC

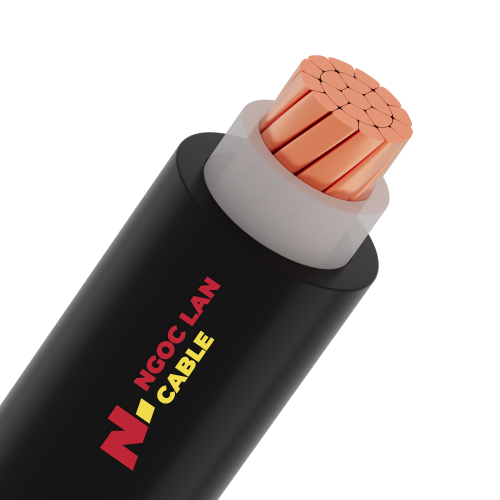

Power cable, 1, 2, 3, 4 cores, copper conductor, XLPE insulated, PVC sheathed.

STANDARDS

TCVN 5933
IEC 60228/ TCVN 6612
IEC 60502-1/ TCVN 5935-1

TECHNICAL CHARACTERISTICS

Rated voltage (Uo/U): 0.6/1kV.
Voltage test 50Hz – 5min: 3.5kV.
Max. conductor temperature in normal operation: 90ºC.
Max. conductor temperature in short-circuit for 5s max duration: 250ºC.

Voltage Group: Low Voltage Cables

APPLICATION:

Used in buildings, cable ladders, cable trays, pipes running on walls or in walls, in closed cable boxes, in factories, buildings, sources go to mechanical equipment in pipes buried underground,…

STRUCTURE:

LV-0.6-1kV-CXV-3C-1C

1. Conductor: Annealed copper, circular compacted or concentric stranded conductor (class 2).
2. Color tapes: Color tapes lie between conductor and natural color insulation.
3. Insulation: XLPE.
4. Filler: PP filling, binding tape or PVC.
5. Outer sheath: PVC.

MARKINGS ON CABLE:

1 core: NGOC LAN CABLE® – [YEAR] – Cu/XLPE/PVC 1C x [SIZE] mm² 0.6/1kV- #### m

2 cores: NGOC LAN CABLE® – [YEAR] – Cu/XLPE/PVC 2C x [SIZE] mm² 0.6/1kV- #### m

3 cores: NGOC LAN CABLE® – [YEAR] – Cu/XLPE/PVC 3C x [SIZE] mm² 0.6/1kV- #### m

4 cores: NGOC LAN CABLE® – [YEAR] – Cu/XLPE/PVC 4C x [SIZE] mm² 0.6/1kV- #### m

3 active + 1 neutral: NGOC LAN CABLE® – [YEAR] – Cu/XLPE/PVC 3C x [SIZE] + 1C x [SIZE] mm² 0.6/1kV- #### m

CABLE IDENTIFICATION:

Color tapes:

2 cores: Red, black
3 cores: Red, yellow, blue
4 cores:
- Active core: Red, yellow, blue.
- Neutral core: Black or no color tapes.

Insulation: Natural or black color.

Outer sheath: Black or other color.

TECHNICAL SPECIFICATIONS TABLE


CXV 1C, 2C, 3C, 4C
Mã hàng	Tiết diện danh định	Cấu trúc	Đường kính ruột dẫn	Chiều dày cách điện danh định	Chiều dày vỏ ngoài Nom. Thickness of outer shealth							Đường kính ngoài gần đúng của cáp Approx. overall diameter of cable						Điện trở DC tối đa ở 20ºC	Trọng lượng gần đúng Approx. Weight
Product code	Nominal area	Structure	Appox. Conductor diameter	Nom. Thickness of insulation	1C	2C	3C	4C	1C	2C	3C	4C	Max. DC resistance at 20ºC	1C	2C	3C	4C
Product code		mm²	Nº x mm	mm	mm	mm							mm						Ω/km	kg/km
CÁN NÉN CHẶT
CXV 10	10	CC	3.67	0.7	1.4	1.8	1.8	1.8	8.00	15.7	16.55	17.87	1.830	141	339	440	551
CXV 16	16	CC	4.70	0.7	1.4	1.8	1.8	1.8	9.00	17.8	18.78	20.36	1.150	199	470	622	787
CXV 25	25	CC	5.73	0.9	1.4	1.8	1.8	1.8	10.33	20.7	21.86	23.82	0.727	288	674	907	1159
CXV 35	35	CC	6.80	0.9	1.4	1.8	1.8	1.8	11.40	22.8	24.18	26.41	0.524	387	892	1217	1565
CXV 50	50	CC	8.00	1.0	1.4	1.8	1.8	1.9	13.00	26.0	27.63	30.00	0.387	513	1176	1615	2078
CXV 70	70	CC	9.70	1.1	1.4	1.9	2.0	2.1	14.70	29.6	31.70	35.00	0.268	722	1644	2293	2984
CXV 95	95	CC	11.50	1.1	1.5	2.0	2.1	2.2	16.70	33.4	35.79	39.55	0.193	976	2198	3081	4019
CXV 120	120	CC	12.85	1.2	1.5	2.1	2.2	2.4	18.25	36.7	39.34	43.71	0.153	1233	2774	3904	5120
CXV 150	150	CC	14.30	1.4	1.6	2.3	2.4	2.5	20.30	40.8	43.74	48.38	0.124	1843	3470	4888	7576
CXV 185	185	CC	15.80	1.6	1.7	2.4	2.5	2.7	22.40	44.8	48.04	53.38	0.0991	1728	3902	5476	7172
CXV 240	240	CC	18.25	1.7	1.8	2.6	2.7	2.9	25.45	50.6	54.27	60.31	0.0754	2437	5430	7671	10061
CXV 300	300	CC	20.70	1.8	1.9	2.8	2.9	3.1	28.10	56.2	60.29	67.01	0.0601	3015	6737	9522	12494
CXV 400	400	CC	23.30	2.0	2.0	3.0	3.1	3.4	31.30	62.6	67.17	74.87	0.0470	3845	8776	12572	16629
CXV 500	500	CC	26.40	2.2	2.1	3.2	3.4	3.7	35.00	70.0	75.33	83.94	0.0366	4767	10927	15703	20766
XOẮN ĐỒNG TÂM
CXV 2.5	2.5	7 x 0.67	2.01	0.7	1.4	1.8	1.8	1.8	6.21	12.42	12.97	13.85	7.410	58	162	194	231
CXV 6	6	7 x 1.04	3.12	0.7	1.4	1.8	1.8	1.8	7.32	14.64	15.36	16.54	3.080	99	258	325	400
CXV 10	10	7 x 1.35	4.05	0.7	1.4	1.8	1.8	1.8	8.25	16.50	17.37	18.79	1.830	144	361	468	586
CXV 16	16	7 x 1.70	5.10	0.7	1.4	1.8	1.8	1.8	9.30	18.60	19.64	21.33	1.150	207	503	666	843
CXV 25	25	7 x 2.14	6.42	0.9	1.4	1.8	1.8	1.8	11.02	22.04	23.36	25.49	0.727	311	740	996	1272
CXV 35	35	7 x 2.52	7.56	0.9	1.4	1.8	1.8	1.9	12.16	24.32	26.82	29.45	0.524	410	962	1334	1722
CXV 50	50	19 x 1.8	9.00	1.0	1.4	1.9	1.9	2.0	13.80	28.80	30.56	33.62	0.387	552	1321	1801	2331
CXV 70	70	19 x 2.14	10.70	1.1	1.5	2.0	2.1	2.2	15.90	32.80	35.06	38.62	0.268	764	1797	2483	3220
CXV 95	95	19 x 2.52	12.60	1.1	1.5	2.1	2.2	2.4	17.80	36.80	39.37	43.62	0.193	1027	2394	3330	4349
CXV 120	120	37 x 2.03	14.21	1.2	1.6	2.3	2.4	2.5	19.81	40.82	43.68	48.20	0.153	1289	2998	4176	5433
CXV 150	150	37 x 2.25	15.75	1.4	1.7	2.4	2.5	2.7	21.95	44.90	48.07	53.29	0.124	1581	3655	5101	6667
CXV 185	185	37 x 2.52	17.64	1.6	1.7	2.6	2.7	2.9	24.24	49.88	53.41	59.23	0.0991	1964	4557	6368	8323
CXV 240	240	61 x 2.25	20.25	1.7	1.8	2.8	2.9	3.1	27.25	55.90	59.88	66.43	0.0754	2553	5889	8251	10794
CXV 300	300	61 x 2.52	22.68	1.8	1.9	2.9	3.1	3.3	30.08	61.36	65.96	73.20	0.0601	3177	7271	10246	13410
CXV 400	400	61 x 2.90	26.10	2.0	2.1	3.2	3.4	3.7	34.30	69.60	74.82	83.24	0.0470	4186	9534	13453	17650
CXV 500	500	61 x 3.20	28.80	2.2	2.2	3.4	3.6	3.9	37.60	76.20	81.91	91.14	0.0366	5076	11541	16299	21389


CXV 3C + 1C
Mã hàng	Tiết diện danh định	Số sợi/Đường kính ruột dẫn Number of wire/Appox. Conductor diameter			Chiều dày cách điện danh định Nom. Thickness of insulation			Chiều dày vỏ ngoài	Đường kính ngoài gần đúng của cáp	Điện trở DC tối đa ở 20ºC Max. DC resistance at 20ºC			Dòng điện định mức trong không khí	Trọng lượng gần đúng
Mã hàng	Tiết diện danh định			Pha	Trung tính	Pha	Trung tính	Chiều dày vỏ ngoài	Đường kính ngoài gần đúng của cáp			Pha	Dòng điện định mức trong không khí	Trọng lượng gần đúng	Trung tính
Product code	Nominal area	Active	Neutral	Active	Neutral	Nom. Thickness of outer shealth	Approx. overall diameter of cable	Active	Neutral	Permissble current in air spaced	Approx. Weight
Product code		mm²	Nº/mm	Nº/mm	mm	mm	mm	mm	Ω/km	Ω/km	A	kg/km
CÁN NÉN CHẶT
CXV 3x10+1x6	3x10+1x6	3.67	7/ 3.12	0.7	0.7	1.8	17.78	1.830	3.080	75	519
CXV 3x16+1x10	3x16+1x10	4.70	3.67	0.7	0.7	1.8	19.98	1.150	1.830	100	755
CXV 3x25+1x16	3x25+1x16	5.73	4.70	0.9	0.7	1.8	23.33	0.727	1.150	127	1082
CXV 3x35+1x16	3x35+1x16	6.80	4.70	0.9	0.7	1.8	25.14	0.524	0.727	158	1383
CXV 3x50+1x25	3x50+1x25	8.00	5.73	1.0	0.9	1.9	28.79	0.387	0.727	192	1861
CXV 3x50+1x35	3x50+1x35	8.00	6.80	1.0	0.9	1.9	29.40	0.387	0.524	192	1963
CXV 3x70+1x35	3x70+1x35	9.70	6.80	1.1	0.9	2.0	33.04	0.268	0.524	246	2630
CXV 3x70+1x50	3x70+1x50	9.70	8.00	1.1	1.0	2.1	36.89	0.268	0.387	246	2993
CXV 3x95+1x50	3x95+1x50	11.50	8.00	1.1	1.0	2.2	37.56	0.193	0.387	298	3756
CXV 3x95+1x70	3x95+1x70	11.50	9.70	1.1	1.1	2.3	38.91	0.193	0.268	298	3793
CXV 3x120+1x70	3x120+1x70	12.85	9.70	1.2	1.1	2.3	44.52	0.153	0.268	346	4851
CXV 3x120+1x95	3x120+1x95	12.85	11.50	1.2	1.1	2.5	50.30	0.153	0.193	346	4845
CXV 3x150+1x95	3x150+1x95	14.30	11.50	1.4	1.1	2.5	46.57	0.124	0.193	399	5820
CXV 3x185+1x95	3x185+1x95	15.80	11.50	1.6	1.1	2.6	50.22	0.0991	0.193	456	7044
CXV 3x185+1x120	3x185+1x120	15.80	12.85	1.6	1.2	2.6	51.15	0.0991	0.153	456	7316
CXV 3x240+1x120	3x240+1x120	18.25	12.85	1.7	1.2	2.8	59.56	0.0754	0.153	538	9232
CXV 3x240+1x150	3x240+1x150	18.25	14.30	1.7	1.4	2.8	57.48	0.0754	0.124	538	9148
CXV 3x300+1x150	3x300+1x150	20.70	14.30	1.8	1.4	3.0	62.69	0.0601	0.124	621	10974
CXV 3x300+1x185	3x300+1x185	20.70	15.80	1.8	1.6	3.0	67.44	0.0601	0.0991	621	11909
XOẮN ĐỒNG TÂM
CXV 3x10+1x6	3x10+1x6	7/ 4.05	7/ 3.12	0.7	0.7	1.8	18.2	1.830	3.080	75	532
CXV 3x16+1x10	3x16+1x10	7/ 5.10	7/ 4.05	0.7	0.7	1.8	20.7	1.150	1.830	100	759
CXV 3x25+1x16	3x25+1x16	7/ 6.42	7/ 5.10	0.9	0.7	1.8	24.5	0.727	1.150	127	1116
CXV 3x35+1x16	3x35+1x16	7/ 7.56	7/ 5.10	0.9	0.7	1.8	26.5	0.524	0.727	158	1431
CXV 3x50+1x25	3x50+1x25	19/ 9.00	7/ 6.42	1.0	0.9	1.9	30.7	0.387	0.727	192	1947
CXV 3x50+1x35	3x50+1x35	19/ 9.00	7/ 7.56	1.0	0.9	2.0	31.6	0.387	0.524	192	2069
CXV 3x70+1x35	3x70+1x35	19/ 10.70	7/ 7.56	1.1	0.9	2.1	35.3	0.268	0.524	246	2758
CXV 3x70+1x50	3x70+1x50	19/ 10.70	19/ 9.00	1.1	1.0	2.1	36.3	0.268	0.387	246	2898
CXV 3x95+1x50	3x95+1x50	19/ 12.60	19/ 9.00	1.1	1.0	2.2	39.9	0.193	0.387	298	3705
CXV 3x95+1x70	3x95+1x70	19/ 12.60	19/ 10.70	1.1	1.1	2.3	41.3	0.193	0.268	298	3954
CXV 3x120+1x70	3x120+1x70	37/ 14.21	19/ 10.70	1.2	1.1	2.4	44.8	0.153	0.387	346	4824
CXV 3x120+1x95	3x120+1x95	37/ 14.21	19/ 12.60	1.2	1.1	2.4	45.9	0.153	0.193	346	5095
CXV 3x150+1x95	3x150+1x95	37/ 15.75	19/ 12.60	1.4	1.1	2.6	49.8	0.124	0.193	399	6052
CXV 3x185+1x95	3x185+1x95	37/ 17.64	19/ 12.60	1.6	1.1	2.7	54.2	0.0991	0.193	456	7224
CXV 3x185+1x120	3x185+1x120	37/ 17.64	37/ 14.21	1.6	1.2	2.7	55.3	0.0991	0.153	456	7518
CXV 3x240+1x120	3x240+1x120	61/ 20.25	37/ 14.21	1.7	1.2	2.9	60.8	0.0754	0.153	538	9359
CXV 3x240+1x150	3x240+1x150	61/ 20.25	37/ 15.75	1.7	1.4	3.0	62.1	0.0754	0.124	538	9705
CXV 3x300+1x150	3x300+1x150	61/ 22.68	37/ 15.75	1.8	1.4	3.1	67.1	0.0601	0.124	621	11629
CXV 3x300+1x185	3x300+1x185	61/ 22.68	37/ 17.64	1.8	1.6	3.2	68.7	0.0601	0.0991	621	12060
