CXV/DATA – 0.6/1kV

Cu/XLPE/PVC/DATA/PVC

Power cable, 1, 2, 3, 4 cores, copper conductor, XLPE insulated, double aluminum tape armoured, PVC sheathed.

STANDARDS

IEC 60228/ TCVN 6612
IEC 60502-1/ TCVN 5935-1

ĐẶC TÍNH KỸ THUẬT

Rated voltage (Uo/U): 0.6/1kV.
Voltage test 50Hz – 5min: 3.5kV.
Max. conductor temperature in normal operation: 90ºC.
Max. conductor temperature in short-circuit for 5s max duration: 250ºC.

Voltage Group: Low Voltage Cables

APPLICATION:

Used in buildings, cable ladders, cable trays, pipes running on walls or in walls, in closed cable boxes, in factories, buildings, sources go to mechanical equipment in pipes buried underground,…

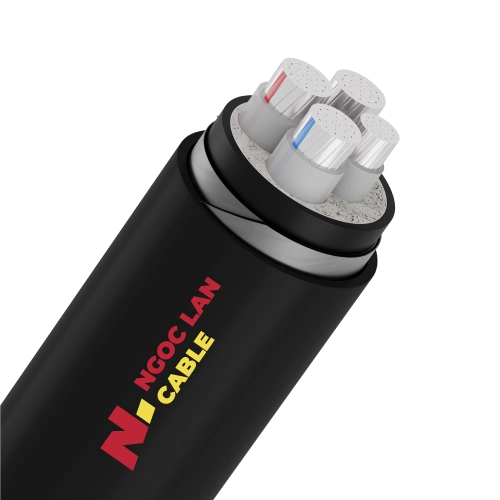

STRUCTURE:

Cấu trúc LV - 0.6/1 kV - CXV/DATA 3C + 1C

1. Conductor: Copper conductor, circular compacted (class 2).

2. Color tapes: Color tapes lie between insulation screen and metallic screen.

3. Insulation: XLPE.

4. Filler: PP Filling, binding tape, PVC.

5. Inner covering: PVC.

6. Giáp kim loại: Giáp 2 lớp băng nhôm.

7. Outer sheath: PVC.

MARKINGS ON CABLE:

1 core: NGOC LAN CABLE® – [YEAR] – Cu/XLPE/PVC/DATA/PVC 1C x [SIZE] mm² 0.6/1kV – #### m

2 cores: NGOC LAN CABLE® – [YEAR] – Cu/XLPE/PVC/DATA/PVC 2C x [SIZE] mm² 0.6/1kV – #### m

3 cores: NGOC LAN CABLE® – [YEAR] – Cu/XLPE/PVC/DATA/PVC 3C x [SIZE] mm² 0.6/1kV – #### m

4 cores: NGOC LAN CABLE® – [YEAR] – Cu/XLPE/PVC/DATA/PVC 4C x [SIZE] mm² 0.6/1kV – #### m

3 active + 1 neutral: NGOC LAN CABLE® – [YEAR] – Cu/XLPE/PVC/DATA/PVC 3C x [SIZE] + 1C x [SIZE] mm² 0.6/1kV – #### m

CABLE IDENTIFICATION:

Color tapes:

2 cores: Red, black.
3 cores: Red, yellow, blue.
4 cores:
- Active core: Red, yellow, blue
- Neutral core: Black.

Insulation: Natural color.

Outer sheath: Black or other color.

TECHNICAL SPECIFICATIONS TABLE


CXV/DATA - 0.6/1kV
Tiết diện danh định	Cấu trúc	Đường kính ruột dẫn	Chiều dày cách điện danh định	Chiều dày lớp bọc trong Nom.Thickness of inner covering							Chiều dày băng nhôm	Chiều dày vỏ ngoài Nom. Thickness of outer shealth							Đường kính ngoài gần đúng của cáp Approx. overall diameter of cable			Điện trở DC tối đa ở 20ºC	Trọng lượng gần đúng Approx. Weight
Nominal area	Structure	Appox. Conductor diameter	Nom. Thickness of insulation	1C	2C	3C	4C	Nom. Thickness of Al tape screen	1C	2C	3C	4C	1C	2C	3C	4C	Max. DC resistance at 20ºC	1C	2C	3C	4C
mm²	mm	mm	mm	mm							mm	mm							mm			Ω/km	kg/km
10	CC	3.67	0.7	1.0	1.0	1.0	1.0	0.5	1.4	1.8	1.8	1.8	11.87	18.54	19.35	21.87	1.830	325	537	636	773
16	CC	4.70	0.7	1.0	1.0	1.0	1.0	0.5	1.4	1.8	1.8	1.8	12.90	20.60	21.58	24.36	1.150	406	692	843	1039
25	CC	5.73	0.9	1.0	1.0	1.0	1.0	0.5	1.4	1.8	1.8	1.9	14.33	23.46	24.66	28.02	0.727	528	930	1162	1464
35	CC	6.80	0.9	1.0	1.0	1.0	1.0	0.5	1.4	1.8	1.9	1.9	15.40	25.60	28.38	30.61	0.524	651	1173	1510	1902
50	CC	8.00	1.0	1.0	1.0	1.0	1.2	0.5	1.5	1.9	2.0	2.1	17.00	28.60	31.60	34.80	0.387	812	1490	1941	2508
70	CC	9.70	1.1	1.0	1.2	1.2	1.2	0.5	1.6	2.1	2.1	2.2	19.10	34.40	36.30	39.60	0.268	1076	2069	2708	3465
95	CC	11.50	1.1	1.0	1.2	1.2	1.4	0.5	1.6	2.2	2.3	2.4	20.90	38.20	40.59	44.75	0.193	1364	2675	3565	4624
120	CC	12.85	1.2	1.0	1.2	1.2	1.4	0.5	1.7	2.3	2.4	2.5	22.65	41.50	44.14	48.71	0.153	1666	3294	4431	5759
150	CC	14.30	1.4	1.0	1.4	1.4	1.4	0.5	1.7	2.4	2.5	2.7	24.50	45.80	48.74	53.58	0.124	2011	4073	5501	7121
185	CC	15.80	1.6	1.0	1.4	1.4	1.6	0.5	1.8	2.6	2.7	2.9	26.60	50.00	53.24	58.98	0.0991	2238	4583	6170	8036
240	CC	18.30	1.7	1.0	1.6	1.6	1.6	0.5	1.9	2.8	2.9	3.1	29.50	56.20	59.87	65.91	0.0754	3001	6251	8510	11033
300	CC	20.70	1.8	1.0	1.6	1.6	1.8	0.5	2.0	3.0	3.0	3.3	32.30	61.80	65.69	73.01	0.0601	3646	7645	10423	13642


CXV/DATA 3C+1C
Tiết diện danh định	Đường kính ruột dẫn Appox. Conductor diameter			Chiều dày cách điện Nom. Thickness of insulation			Chiều dày lớp bọc trong	Chiều dày băng nhôm	Chiều dày vỏ ngoài	Đường kính ngoài gần đúng của cáp	Điện trở DC tối đa ở 20ºC Max. DC resistance at 20ºC	Trọng lượng gần đúng
Nominal area	Pha Active	Trung tính Neutral	Pha Active	Trung tính Neutral	Nom.Thickness of inner covering	Nom. Thickness of Al tape screen	Nom. Thickness of outer shealth	Approx. overall diameter of cable	Pha Active	Trung tính Neutral	Approx. Weight
mm²	mm			mm			mm	mm	mm	mm	Ω/km	A
3x10+1x6	3.67	3.12	0.7	0.7	1.0	0.5	1.8	21.54	1.830	3.080	669
3x11+1x7	4.20	3.39	0.7	0.7	1.0	0.5	1.8	22.66	1.710	2.640	735
3x14+1x7	4.80	3.39	0.7	0.7	1.0	0.5	1.8	23.75	1.300	2.640	856
3x16+1x10	4.70	3.67	0.7	0.7	1.0	0.5	1.8	23.74	1.150	1.830	876
3x22+1x11	6.00	4.20	0.7	0.7	1.0	0.5	1.8	27.15	0.840	1.710	1180
3x25+1x16	5.73	4.70	0.9	0.7	1.0	0.5	1.8	26.96	0.727	1.150	1200
3x35+1x16	6.80	4.70	0.9	0.7	1.0	0.5	1.9	29.10	0.524	0.727	1539
3x50+1x25	8.00	5.73	1.0	0.9	1.0	0.5	2.0	32.71	0.387	0.727	1981
3x50+1x35	8.00	6.80	1.0	0.9	1.2	0.5	2.0	33.75	0.387	0.524	2034
3x70+1x35	9.70	6.80	1.1	0.9	1.2	0.5	2.2	37.60	0.268	0.524	2766
3x70+1x50	9.70	8.00	1.1	1.0	1.2	0.5	2.2	38.45	0.268	0.387	2794

CC: Circular compacted conductor
