VCm – 300/500V – Annealed Copper Wire

Cu/PVC

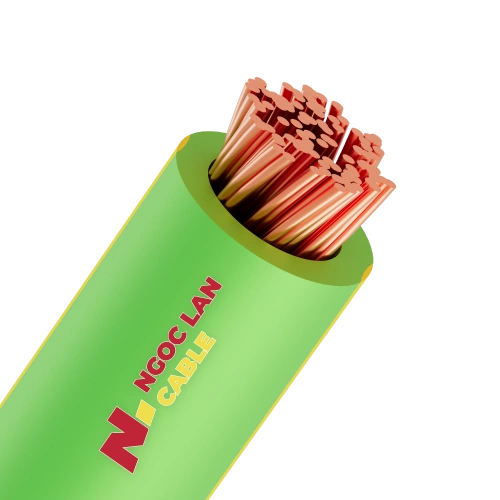

Single core, annealed copper conductor, PVC insulated.

STANDARDS

Rated voltage (Uo/U): 300/500V.
Voltage test 50Hz – 5min:
- 1.5 kV for insulation thickness up to and including 0.6mm
- 2.0 kV for insulation thickness greater than 0.6mm
Max. conductor temperature in normal operation: 70ºC.

Used for lighting systems, household, infrastruture system.

VCm - 300/500V

1. Conductor: Annealed copper bunched (class 5).
2. Insulation: PVC.

NGOC LAN CABLE ® – [YEAR] – Cu/PVC (VCm) 1C x [SIZE] mm² – 300/500V- #### m

Insulation: Red, yellow, blue, black, yelllow – green


Mã hàng	Tiết diện danh định	Cấu trúc ruột dẫn	Chiều dày cách điện danh định	Đường kính ngoài gần đúng của cáp	Điện trở DC tối đa ở 20ºC	Trọng lượng gần đúng
Product code	Nominal area	Conductor structure	Nom. Thickness of insulation	Approx. overall diameter of cable	Max. DC resistance at 20ºC	Approx. Weight
Product code		mm²	Nº x mm	mm	mm	Ω/km	kg/km
VCm 0.5	0.5	16/0.20	0.6	2.1	39.000	8.6
VCm 0.75	0.75	30/0.177	0.6	2.3	26.000	11.4
VCm 1.0	1	32/0.20	0.6	2.5	19.500	14.4
VCm 1.5	1.5	30/0.25	0.7	3.0	13.300	20.9
VCm 2.5	2.5	50/0.25	0.8	3.6	7.980	32.7
VCm 4.0	4	80/0.25	0.8	4.3	4.950	49.8
VCm 6.0	6	3x40/0.25	0.8	4.8	3.300	69.5
VCm 10	10	5x40/0.25	1.0	6.6	1.910	121.5
VCm 16	16	5.5x40/0.25	1.0	7.9	1.210	149.6
VCm 25	25	5x100/0.25	1.2	9.7	0.780	287.5
VCm 35	35	306/0.38	1.2	14.0	0.554	475.8
VCm 50	50	10x100/0.25	1.4	13.4	0.386	565.6
VCm 70	70	361 / 0.5	1.4	18.7	0.272	916.1
VCm 95	95	475 / 0.5	1.6	20.8	0.206	1175.2
VCm 120	120	608 / 0.5	1.6	22.8	0.161	1467.0
VCm 150	150	740 / 0.5	1.8	25.5	0.129	1804.7
VCm 185	185	925 / 0.5	2.0	28.5	0.106	2255.3
VCm 240	240	1184 / 0.5	2.2	32.1	0.0801	2876.6
