VCm – 450/750V – Annealed Copper Wire

Cu/PVC

Single core wire, annealed copper conductor, PVC insulated.

STANDARDS

IEC 60228/ TCVN 6612
IEC 60227/ TCVN 6610

TECHNICAL CHARACTERISTICS

Rated voltage (Uo/U): 450/750V
Voltage test 50Hz – 5min: 2.5 kV
Max. conductor temperature in normal operation: 70ºC

Voltage Group: Low Voltage Cables

Function Group: Electric building wires

APPLICATION:

Used for lighting systems, household, infrastruture system, grounding wires…

STRUCTURE:

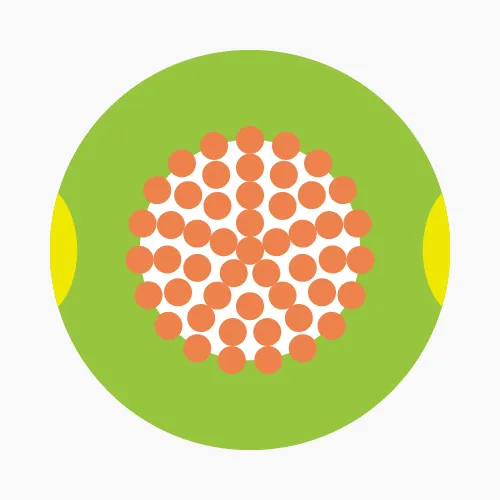

Cấu trúc LV - 450/750V - VCm

1. Conductor: Annealed copper bunched (class 5).

2. Insulation: PVC.

MARKINGS ON CABLE:

NGOC LAN CABLE® – [YEAR] – Cu/PVC (VCm) x [SIZE] mm² 450/750V – #### m

CABLE IDENTIFICATION:

Insulation: Red, black, green – yellow or other color.

TECHNICAL SPECIFICATIONS TABLE


Mã hàng	Loại	Cấu trúc	Chiều dày cách điện	Đường kính cách điện	Trọng lượng gần đúng	Điện trở DC tối đa ở 20ºC	Dòng điện cho phép
Product code	Type	Structure	Nom. Thickness of Insulation	Nom. Diameter of insulation	Approx. weight	Max. DC resistance at 20ºC	Permissble current
Product code		mm²	mm	mm	mm	kg/km	Ω/km	A
VCm 0.5	0.5	16/0.20	0.6	2.2	9	39.0	11
VCm 0.75	0.75	30/0.177	0.6	2.5	12	26.0	14
VCm 1.0	1	32/0.2	0.6	2.6	15	19.5	17
VCm 1.5	1.5	30/0.25	0.7	3.1	22	13.3	22
VCm 2.5	2.5	50/0.25	0.8	3.8	34	7.98	31
VCm 4.0	4	80/0.25	0.8	4.3	50	4.95	41
VCm 6.0	6	3x40/0.25	0.8	4.9	71	3.30	53
VCm 10	10	5x40/0.25	1.0	6.4	119	1.91	73
VCm 16	16	5.5x40/0.25	1.0	7.4	141	1.21	99
VCm 25	25	5x100/0.25	1.2	9.1	275	0.78	131
VCm 35	35	7x100/0.25	1.2	10.4	377	0.554	162
VCm 50	50	10x100/0.25	1.4	12.3	535	0.386	196

*Beside the table of specification above, the other requirements can be satisfied following to customer demand, such as, size & standards.

HOW CAN WE HELP?

Contact us now for accurate, customized advice (response within 24 business hours).
