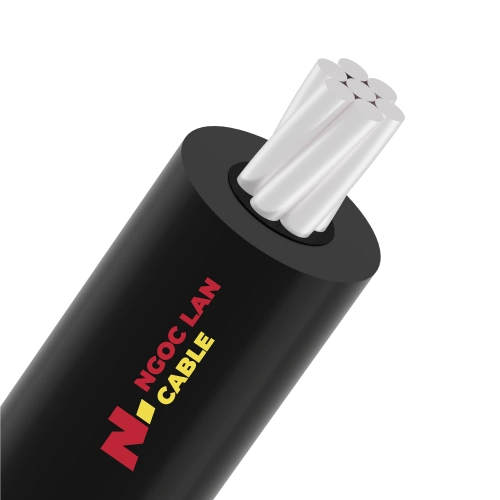

WB-AXHe – 6/10(12)kV

WB/Al/Semi/XLPE/HDPE

Power cable, single core, aluminum conductor with water blocking, conductor screen, XLPE insulated, HDPE sheathed

STANDARDS

Used for power transmission lines and power distribution…

Cấu trúc MV - 6/10(12)kV - WB-AXHe 1C cc

1. Conductor Aluminum conductor (class 2), concentric stranded or circular compacted conductor, water blocking system of conductor.

2. Conductor screen: Semi – conductive compound.

3. Insulation: XLPE.

4. Outer sheath: HDPE.

NGOC LAN CABLE® – [YEAR] – WB-Al/Sc/XLPE/HDPE 1C x [SIZE] mm² 6/10(12)kV – #### m

Insulation: Natural color.

Outer sheath: Black.


Tiết diện danh định	Cấu trúc	Đường kính ruột dẫn	Chiều dày lớp bán dẫn ruột dẫn	Chiều dày cách điện danh định	Chiều dày vỏ ngoài	Đường kính ngoài gần đúng của cáp	Điện trở DC tối đa ở 20ºC	Trọng lượng gần đúng
Nominal area	Structure	Appox. Conductor diameter	Nom.Thickness of semiconductor	Nom. Thickness of insulation	Nom. Thickness of outer shealth	Approx. Overall diameter of cable	Max. DC resistance at 20ºC	Approx. Weight
mm²	Nº x mm	mm	mm	mm	mm	mm	Ω/km	kg/km
CÁN NÉN CHẶT/CIRCULAR COMPACTED
25	CC	5.80	0.6	3.4	1.2	16.20	1.200	241
35	CC	7.00	0.6	3.4	1.2	17.40	0.868	284
50	CC	8.20	0.6	3.4	1.2	18.60	0.641	333
70	CC	9.70	0.6	3.4	1.2	20.10	0.443	416
95	CC	11.50	0.6	3.4	1.2	21.90	0.320	509
120	CC	12.85	0.6	3.4	1.2	23.25	0.253	595
150	CC	14.30	0.6	3.4	1.2	24.70	0.206	705
185	CC	15.80	0.6	3.4	1.2	26.20	0.164	807
240	CC	18.30	0.6	3.4	1.2	28.70	0.125	1010
300	CC	20.70	0.6	3.4	1.2	31.10	0.100	1180
XOẮN ĐỒNG TÂM/ CONCENTRIC STRANDED
25	7 x 2.14	6.42	0.6	3.4	1.2	16.82	1.200	261
35	7 x 2.52	7.56	0.6	3.4	1.2	17.96	0.868	309
50	19 x 1.80	9.00	0.6	3.4	1.2	19.40	0.641	373
70	19 x 2.14	10.70	0.6	3.4	1.2	21.10	0.443	461
95	19 x 2.52	12.60	0.6	3.4	1.2	23.00	0.320	571
120	37 x 2.03	14.21	0.6	3.4	1.2	24.61	0.253	673
150	37 x 2.25	15.75	0.6	3.4	1.2	26.15	0.206	781
185	37 x 2.52	17.64	0.6	3.4	1.2	28.04	0.164	924
240	61 x 2.25	20.25	0.6	3.4	1.2	30.65	0.125	1143
300	61 x 2.52	22.68	0.6	3.4	1.2	33.08	0.100	1369
